Southern Grid Standard Pile

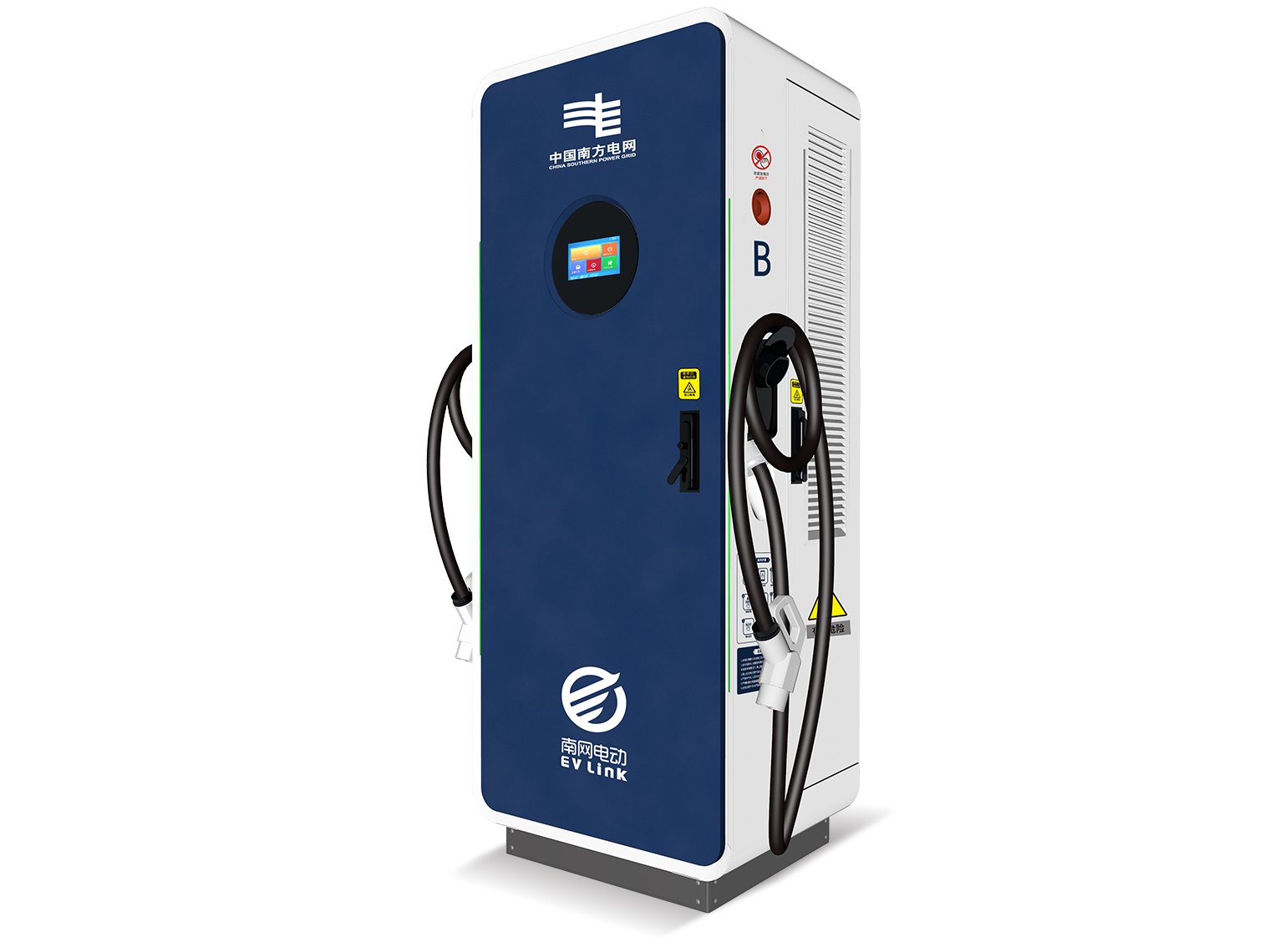

120kW integrated dual-gun DC charger
7 kW injection wall mounted single gun AC charging station (without screen) supports 220V single-phase input, maximum output of 32 A, adopts GB/T 7-hole AC gun, supports card swiping or Bluetooth start stop. Equipped with protection functions such as overvoltage, undervoltage, overload, leakage, and overheating, with an IP65 protection level, supporting OTA upgrades, wall mounted installation, compact size, suitable for private parking spaces and other scenarios.
Suitable for high load density areas, cable power supply networks, industrial and mining enterprises, power plant substations, wind power, subways, etc., especially suitable for power transmission in high-altitude areas.
Product Highlights
Flexible payment methods
Complete protection functions
Real-time display function
Diverse charging modes
Supports online upgrades
Flexible networking methods
Strict protection level
Precise metering and billing
Technical parameters
| Performance Parameters | Item | Parameter |
| Appearance Structure | Shell Material | Metal |
| Product Dimensions | 750*580*1880 (L*D*H, Unit: mm) | |
| Screen Size | 7 inches | |
| Product Weight | 200kg | |
| Gun Cable Length | 5m(optional) | |
| Installation Method | Floor Installation | |
| Product Color | Blue Gray | |
| Electrical Parameters | Rated Power | 120kW |
| Rated Input Voltage | 380V±20% | |
| Rated Output Voltage | 1000V | |
| Rated Output Current | 120A | |
| Single Gun Maximum Output Current | 250A | |
| Output Efficiency | ≥94% | |
| Charging Mode | Single Gun Full Power Output, Dual Guns Equal Power Output | |
| Standby Power Consumption | N*20W, N represents the number of charging interfaces | |
| Impulse Withstand Voltage | 12kV | |
| Power Frequency Withstand Voltage | 3.5kV | |
| Output Form | Integrated Dual Guns (Support Integrated Single Gun or Integrated Dual Guns) | |
| Lightning Protection Device | Class C | |
| Environmental Adaptation | Product Noise | ≤65dB |
| Operating Temperature | -25℃-55℃ | |
| Operating Altitude | ≤2000m | |
| Protection Class | IP54 |
