Southern Grid Standard Pile

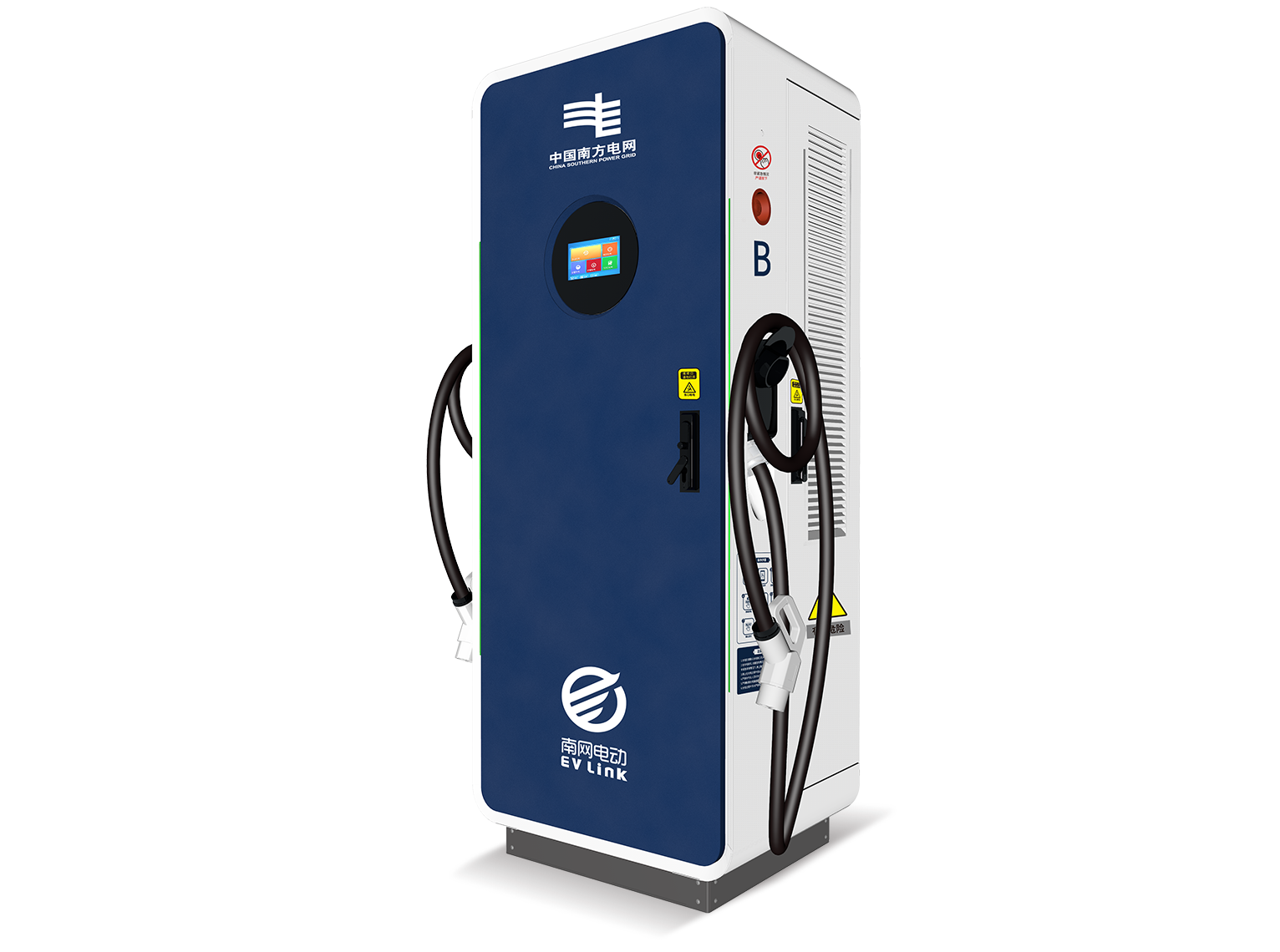

160-180kW integrated single-gun/dual-gun DC charger
Grid peak shaving and frequency regulation, new energy support, industrial and commercial energy storage, home energy storage, backup power supply
Product Highlights
Flexible payment methods
Complete protection functions
Real-time display function
Diverse charging modes
Supports online upgrades
Flexible networking methods
Strict protection level
Metering and billing Precise
Technical parameters
| Performance Parameters | Item | Parameter |
| Appearance Structure | Shell Material | Metal |
| Product Dimensions | 750*580*1880 (L*D*H, Unit: mm) | |
| Screen Size | 7 inches | |
| Product Weight | 250kg(Weight Range: 220-250kg) | |
| Gun Cable Length | 5m (Optional) | |
| Installation Method | Floor Installation | |
| Product Color | Blue Gray | |
| Electrical Parameters | Rated Power | 80kW (Supportable Power Range: 160-180kW) |
| Rated Input Voltage | 380V±20% | |
| Rated Output Voltage | 1000V | |
| Rated Output Current | 180A (Rated Current Range: 160-180A) | |
| Single Gun Maximum Output Current | 250A | |
| Output Efficiency | ≥94% | |
| Charging Mode | Single Gun Full Power Output, Dual Guns Equal Power Output | |
| Standby Power Consumption | 20W/Gun | |
| Impulse Withstand Voltage | 12kV | |
| Power Frequency Withstand Voltage | 3.5kV | |
| Output Form | Integrated Dual Guns (Support Integrated Single Gun or Integrated Dual Guns) | |
| Lightning Protection Device | Class C | |
| Environmental Adaptation | Product Noise | ≤65dB |
| Operating Temperature | -25℃-55℃ | |
| Operating Altitude | ≤2000m | |
| Protection Class | IP54 |
Note: The product description is for reference only. The actual appearance, specifications, and other information of the product are subject to the actual product sold.
