24th Edition National Grid Standard Pile

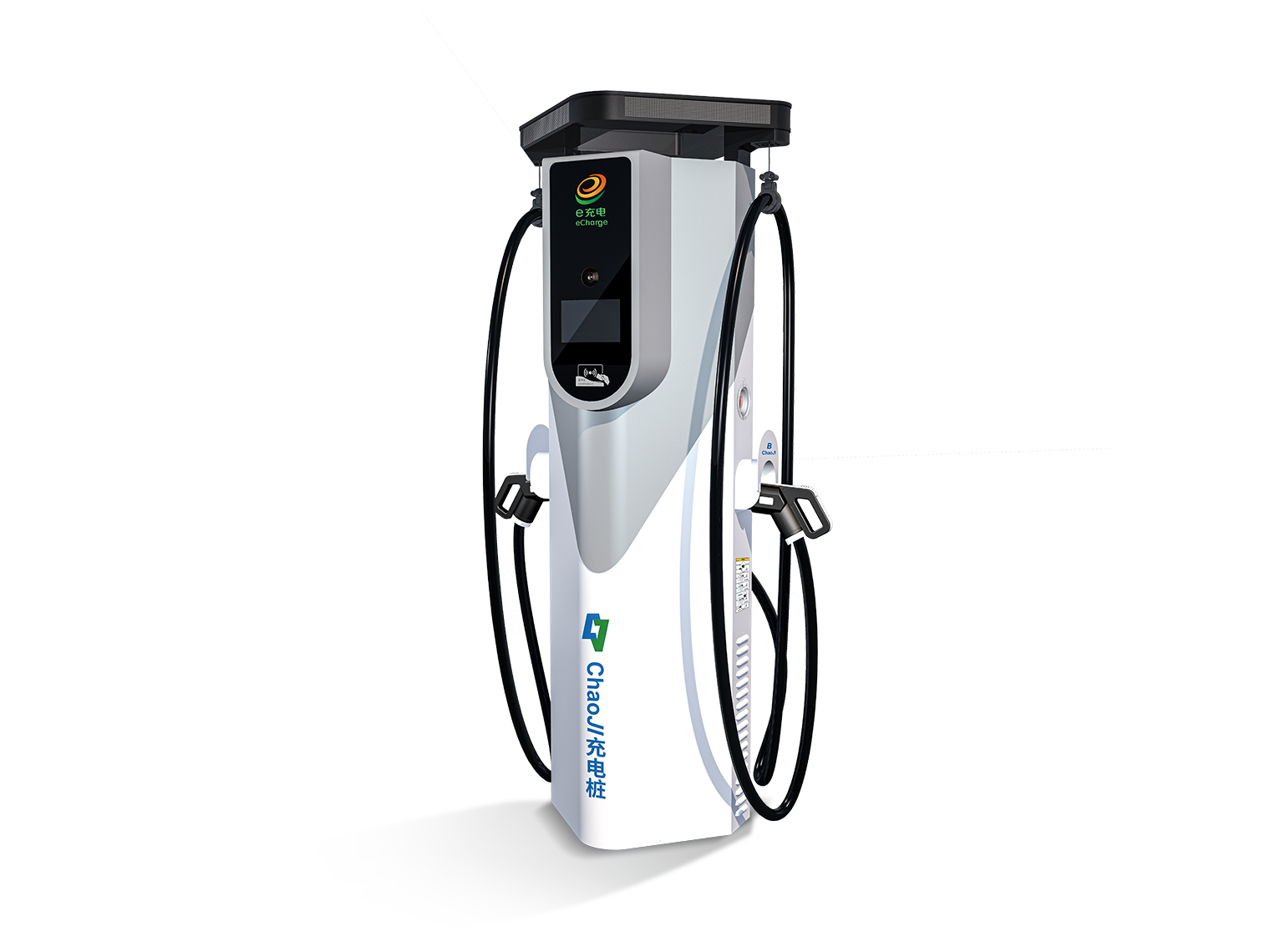

400A/600A Dual-Gun Liquid-Cooled Charging Terminal
This product is a 400A/600A dual-gun liquid-cooled charging terminal, which, when used with our company's high-power charging pile, can provide customers with reliable, safe, and fast DC charging services to meet the charging needs of electric vehicles. The product provides multiple communication interfaces for real-time communication with the station-level monitoring center or operation management center, uploading real-time charging information. The product has a self-test function.
Large charging stations, freight terminals, bus depots, community parking lots, large shopping malls, roadside parking lots, etc.
Product Highlights
Diverse payment methods
Complete protection functions
Real-time display function
Supports online upgrades
Strict protection level
Accurate metering and billing
Technical parameters
| Performance Parameters | Item | Parameter |
| Appearance Structure | Shell Material | Metal |
| Product Size | 564*664*1805mm (Length*Depth*Height) |
|
| Screen Requirement | 7 Inches | |
| Installation Method | Floor-mounted Installation | |
| Gun Cable Length | 4m(Optional) | |
| Product Weight | 190kg | |
| Product Color | Gray and White | |
| Electrical Parameters | Output Voltage Range | 200-1000V |
| Output Efficiency | 2.95 | |
| Maximum Output Current | 400A/600A | |
| Standby Power Consumption | ≤30W | |
| Impulse Withstand Voltage | 6kV | |
| Power Frequency Withstand Voltage | 3.1kV DC | |
| Output Form | Integrated Dual Guns | |
| Environmental Adaptability | Operating Temperature | -30℃~55℃ |
| Operating Altitude | ≤2000m | |
| Protection Level | IP55 |
Note: The product description is for reference only. The actual appearance, specifications, and other information of the product are subject to the actual product sold.
