Ac Charging Pile

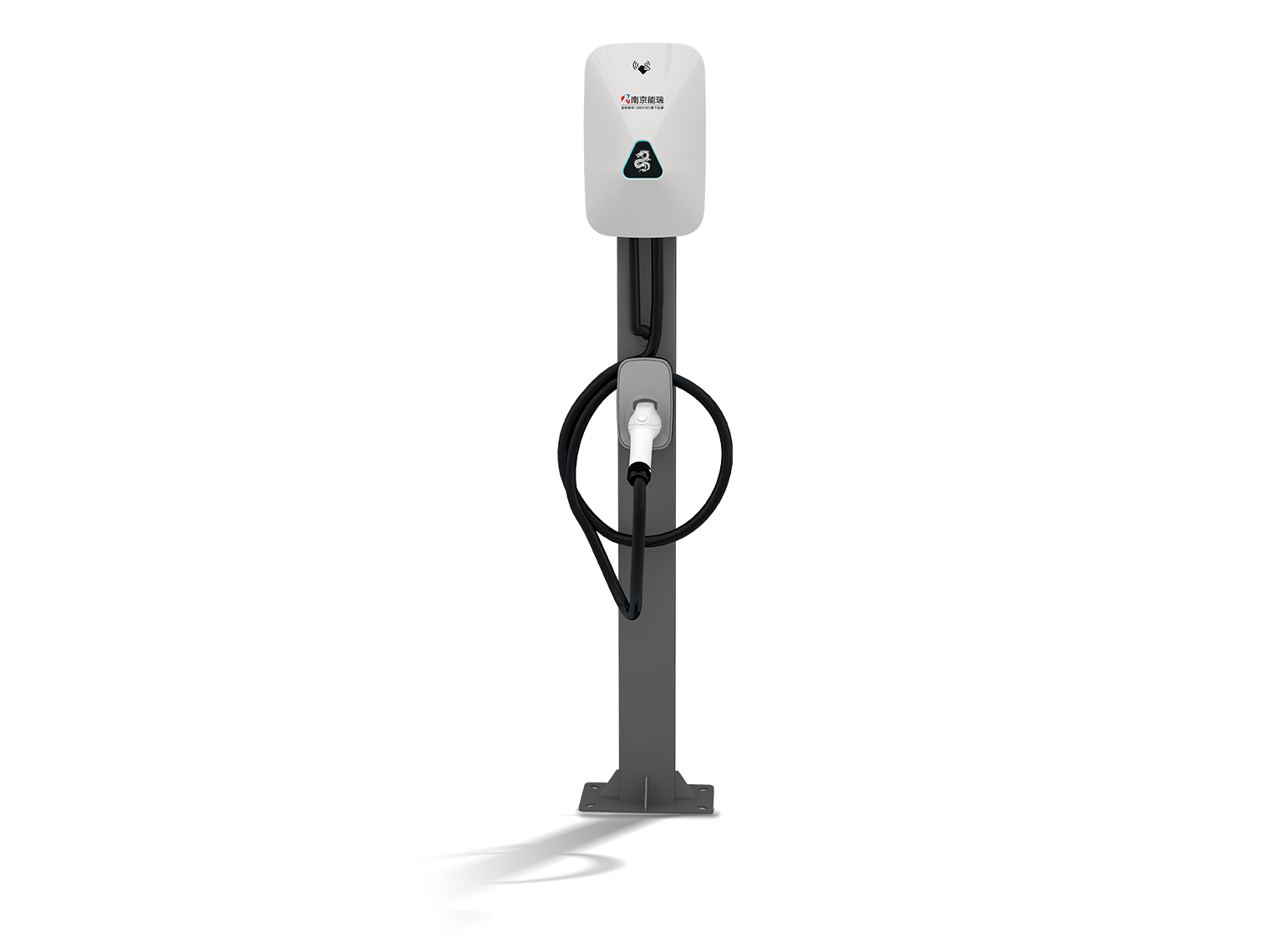

7kW injection molded wall-mounted single-gun AC charging pile (no screen)
Suitable for commercial parking lots, dedicated charging stations, and urban public charging points, providing stable and safe charging services for electric vehicle users, especially suitable for operating vehicles and busy areas that require fast charging.
Product Highlights
Easy installation and production
Diverse payment methods
Complete protection functions
Strict protection level
Simple and stylish design
Supports online upgrades
Technical parameters
| Performance Parameters | Item | Parameter |
| Appearance & Structure | Housing Material | PC/PC+ABS |
| Product Dimensions | 203*119*316mm (L*D*H) | |
| Screen Requirement | No Screen | |
| Installation Method | Wall-Mounted/Pole-Mounted | |
| Cable Length | 5m (Optional) | |
| Product Weight | 4kg (Excluding Pole) | |
| Product Color | Bright Silver White/Mirage Grey | |
| Electrical Parameters | Rated Voltage | 220V±20% |
| Rated Current | 32A | |
| Rated Power | 7kW | |
| Standby Power Consumption | 5W | |
| Impulse Withstand Voltage | 2.5kV | |
| Power Frequency Withstand Voltage | 1.5kV AC | |
| Leakage Current | ≤30mA | |
| Output Configuration | Single Gun | |
| Lightning Protection Device | Class C | |
| Environmental Adaptability | Operating Temperature | -30℃ - 60℃ |
| Operating Altitude | ≤2000m | |
| Protection Level | IP66 | |
| Cooling Method | Natural Cooling |
Note: The product description is for reference only. The actual appearance, specifications, and other information of the product are subject to the actual product sold.
