21st Edition National Grid Standard Pile

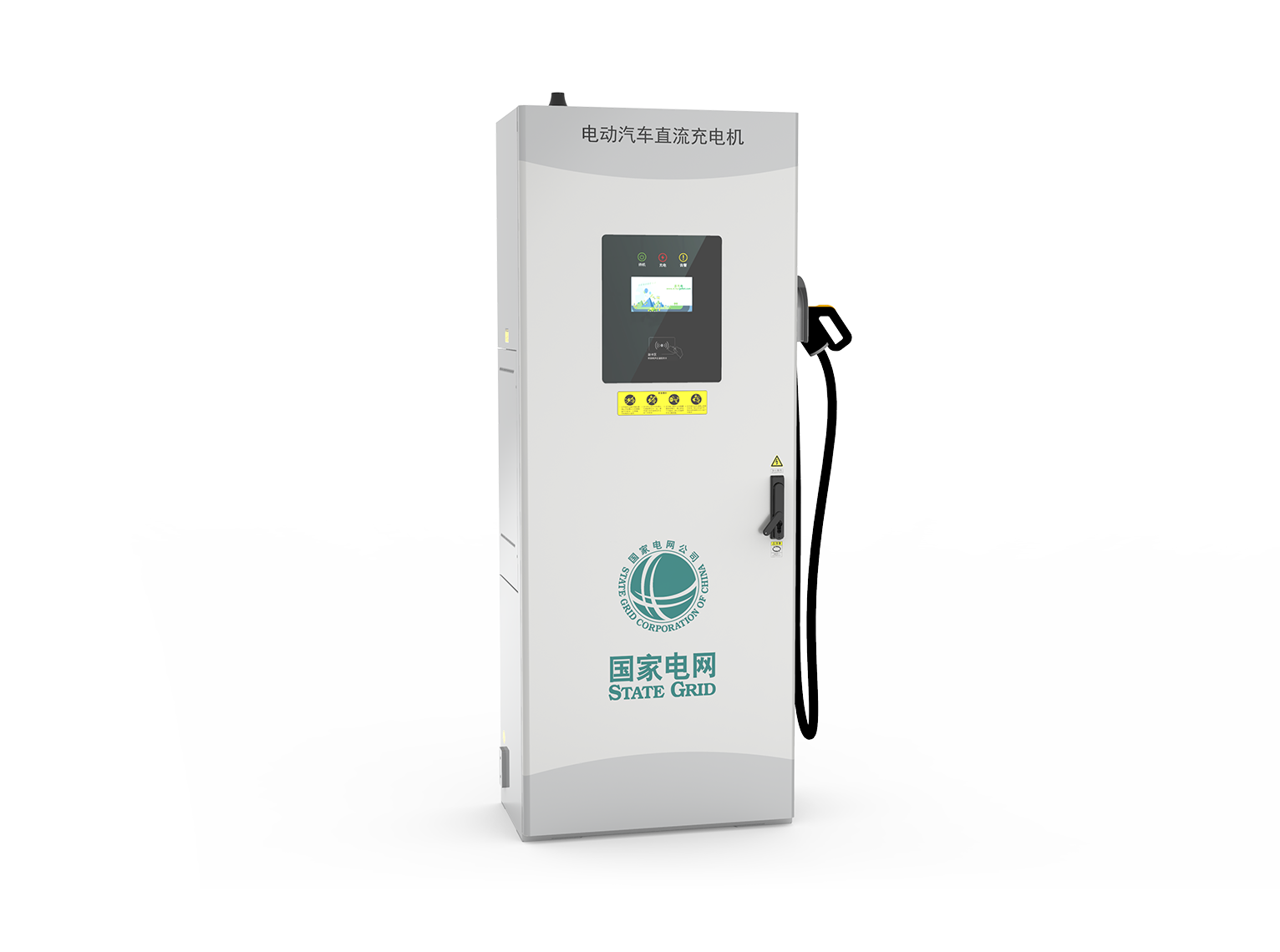

80kW Integrated Single-Gun DC Charger
It is a new generation of intelligent products for power demand-side management and electricity services. It integrates modern mobile communication technology, computer technology, and power measurement technology. It supports and utilizes advanced GPRS/4G/CDMA wireless public networks, 10/100BaseT Ethernet, and dedicated fiber optic networks to achieve remote electricity metering and monitoring, automatic meter reading, and remote electricity anomaly alarms, strengthening the power department's technical capabilities to prevent electricity theft; it generates various management data, analysis curves, and reports for the power department, providing scientific and advanced technical means for refined management.
Large shopping malls, bus depots, freight terminals, community parking lots, logistics vehicle depots, etc.
Product Highlights
Simple installation and operation
Diverse payment methods
Complete protection functions
Real-time display function
Strict protection level
Supports online upgrades
Technical parameters
| Performance Parameter | Item | Parameter |
| Appearance & Structure | Shell Material | Metal |
| Product Dimensions | 700*400*1900 (L*D*H) | |
| Screen Size | 7 inches or no screen | |
| Electrical Parameters | Installation Method | Floor-mounted |
| Gun Cable Length | 5m (optional) | |
| Product Weight | 120kg | |
| Product Color | White-gray | |
| Rated Input Voltage | 380V±20% | |
| Rated Output Voltage | 1000V | |
| Rated Output Current | 80A (Current Range: 60-80A) | |
| Maximum Output Current | 250A | |
| Rated Power | 80kW (Power Range: 60-80kW) | |
| Standby Power Consumption | 20W | |
| Impulse Withstand Voltage | 12kV | |
| Power Frequency Withstand Voltage | 3.5kV | |
| Output Efficiency | ≥94% | |
| Output Method | Integrated Single Gun | |
| Lightning Protection Device | Class C | |
| Product Noise | ≤65dB | |
| Constant Power Range | 300-1000V | |
| Environmental Adaptability | Operating Altitude | ≤2000m |
| Protection Level | IP54 | |
| Operating Temperature | -25℃~55℃ |
