Product Highlights

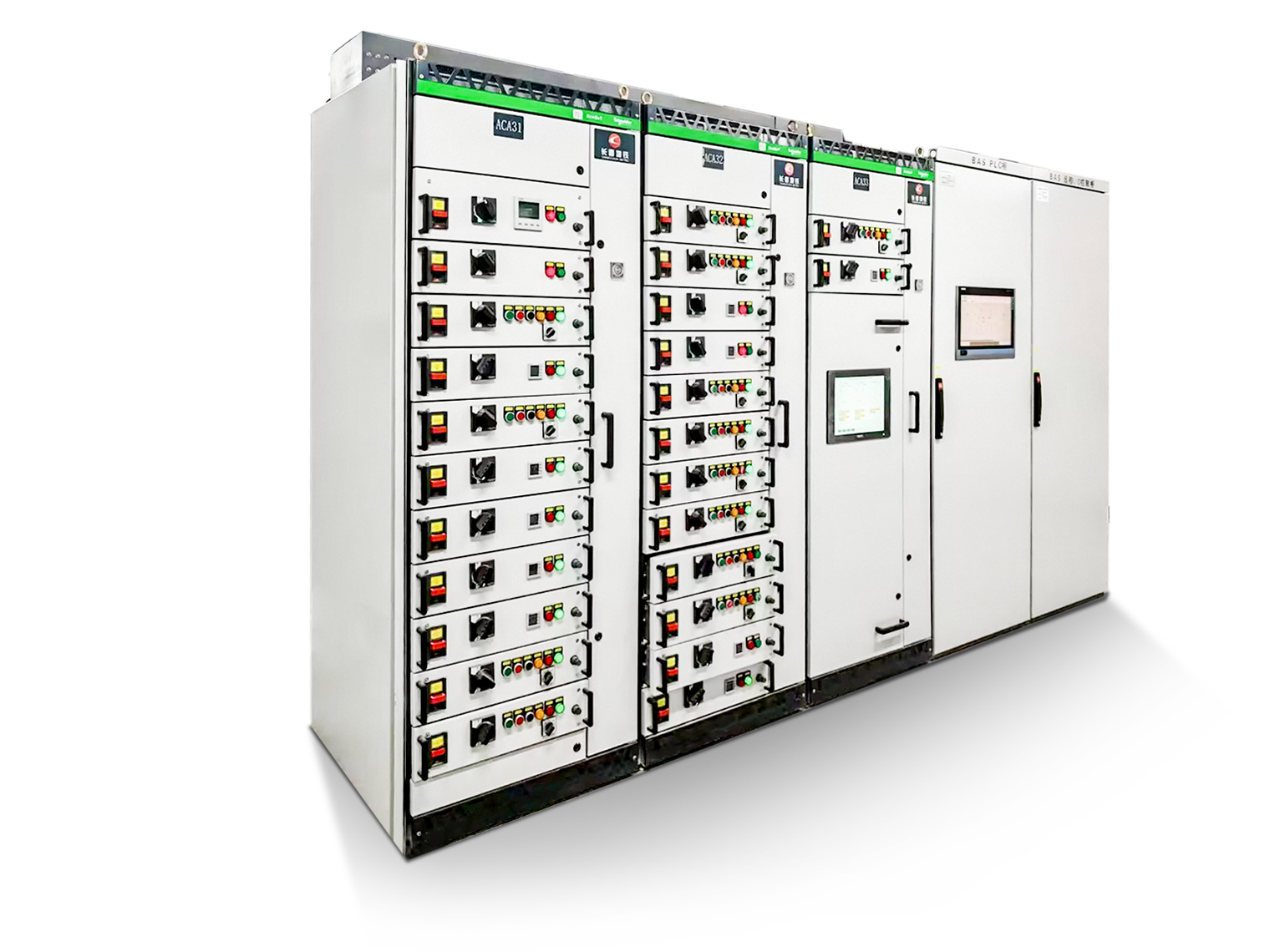

Schneider Blokset series intelligent low-voltage distribution cabinet



The cable compartment is spacious, with protective covers for secondary wiring; explosion-proof glass windows provide direct monitoring of cable connections.

Schneider Blokset series intelligent low-voltage distribution cabinet



Based on load trend analysis, automatically generates energy consumption reports and provides early warning of potential hazards such as overload and leakage.

Schneider Blokset series intelligent low-voltage distribution cabinet



Modular combination of functional unit cabinets.

Schneider Blokset series intelligent low-voltage distribution cabinet



The drawer unit is the main body, and both withdrawable and fixed types are available, allowing for flexible and diverse combinations.

Technical parameters

ItemUnitData
Enclosure Protection Rating/IP4X
Operating Temperature-25~+40
Overvoltage Category/IV
Material Group/IIIa
Rated VoltagekV0.4
Rated FrequencyHz50
Rated Insulation Voltage (Incoming/Feeder Cabinet)kV1
Rated Insulation Voltage (Control Cabinet)kV0.8
Horizontal Main Busbar Rated CurrentA1600-4002500-10004000-16006300-4000
Vertical Distribution Busbar Rated CurrentA800-2001300-10002700-10002700-2000
Horizontal Main Busbar Rated Short-Time Withstand Current / 1skA305080100
Vertical Distribution Busbar Rated Short-Time Withstand Current / 1skA30506580
Horizontal Main Busbar Rated Peak Withstand CurrentkA63105176220
Vertical Distribution Busbar Rated Peak Withstand CurrentkA63105143176
Standard Cabinet Dimensions (W*D*H)mm(700/800/900)*1000*2200(900/1000/1200)*1000*2200


Note: The product description is for reference only. The actual appearance, specifications, and other information of the product are subject to the actual product sold.
