Data Collection Terminal

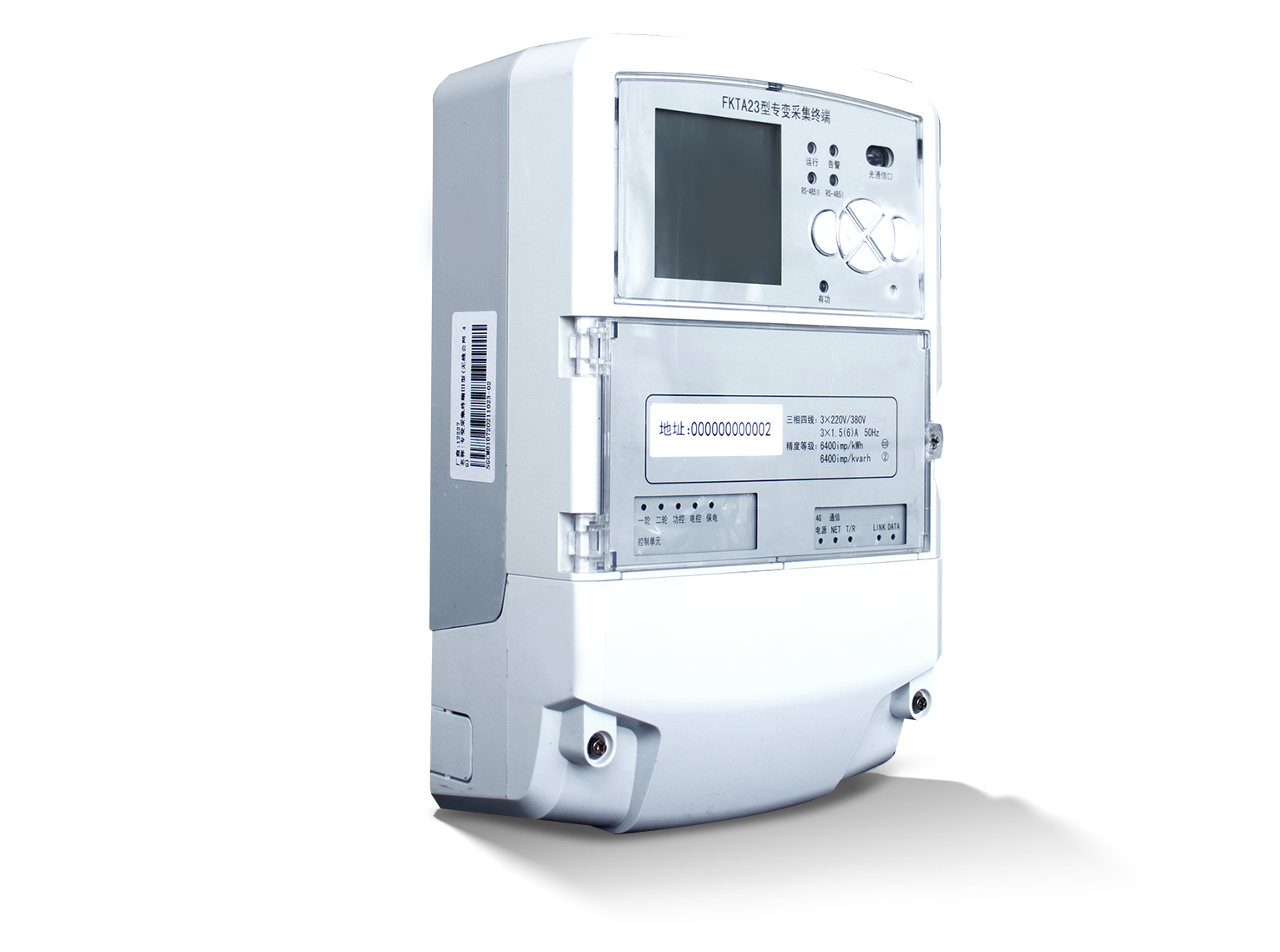

FKTA43-NRZS3227 Dedicated Transformer Acquisition Terminal Type III
This product uses a sodium-ion battery liquid-cooled integrated system, offering high safety, a cycle life of over 10,000 cycles, and advantages in low and high-temperature resistance.
Factories, mines, entertainment venues, large air conditioning units
Product Highlights
Comprehensive monitoring
Complete self-contained five-proof interlocking function, supplemented by a microcomputer anti-misoperation device, achieving comprehensive protection.
Electrical energy control
Convenient maintenance design: the low-voltage compartment access panel supports external replacement, and the instrument door is designed to prevent sagging.
Acquisition of multi-functional meter data
与集成在专变或其配套设备中的多功能电表（或直接与外部接入的智能电表）进行通信，采集各类精确的电量电参数。
Event recording
It can select certain users as key users as required, generating curve data at a 1-hour collection interval.
Technical parameters
| Performance Parameter Table | |
| Item Name | Main Technical Parameters |
| Meter Constant | 10000imp/kWh |
| Accuracy Class | Active Class C; Reactive Class 2 |
| Specification | 3×1.5(6)A, 3×5(6)A |
| Reference Voltage | 3×220V/380V |
| Voltage Circuit Power Consumption | ≤15W 25VA |
| Current Circuit Power Consumption | ≤0.25VA |
| Limiting Operating Range | 0.8Un~1.2Un |
| Communication Interface | 2 RS-485 interfaces, 1 CAN interface multiplexed with RS-4851 interface, 1 RS-232 interface |
| Daily Timing Error | ≤±0.5s/d |
| Overall Dimensions | 290mm (H) × 180mm (W) × 95mm (D) |
