Product Highlights

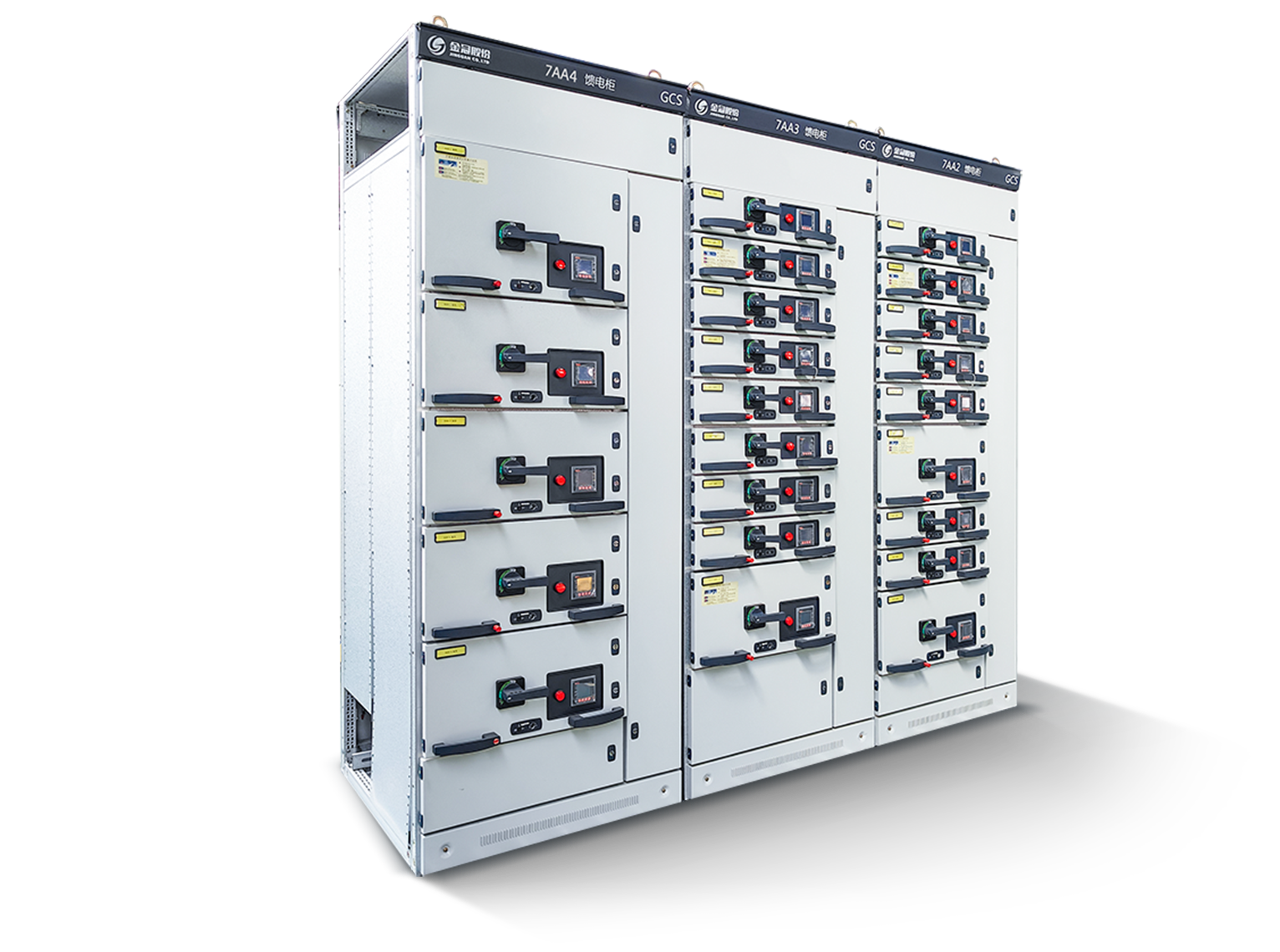

GCS Series Low-Voltage Draw-Out Switchgear



Can be remotely controlled through a remote power sales system.

GCS Series Low-Voltage Draw-Out Switchgear



The airtight design effectively isolates the influence of the external environment, enabling long-term stable operation in various complex and harsh environments.

GCS Series Low-Voltage Draw-Out Switchgear



Micro-positive pressure design reduces leakage risk, and zero gauge pressure meets all national standard electrical performance requirements (including short-circuit breaking). The metal casing is reliably grounded, ensuring safety and reliability.

GCS Series Low-Voltage Draw-Out Switchgear



Spring energy storage, cam drive, and four-bar linkage mechanism, with a simple structure, stable performance, and long mechanical life.

Technical parameters

ItemUnitParameter
Rated Working VoltageV380/400
Rated Insulation VoltageV660/690
FrequencyHz50/60
Horizontal BusbarRated Working CurrentA630
800
10001000
12501250
1600
2000
25002500
3200
4000
Rated Short-Time Withstand CurrentkA305080
Rated Peak Withstand CurrentkA63105176
Vertical BusbarRated Working CurrentA630, 800, 1000
Rated Short-Time Withstand CurrentkA30, 50
Rated Peak Withstand CurrentkA63, 105
Earthing SystemTT-IT-THS-THC
Protection LevelIP30, IP40, IP31, IP41
Enclosure DimensionsWidthmm600, 800, 1000
Depthmm600, 800, 1000
Heightmm2200
Installation EnvironmentIndoor
Main StandardsIEC61439-1, GB7251.12


Note: The product description is for reference only. The actual appearance, specifications, and other information of the product are subject to the actual product sold.
