Smart Ring Main Unit

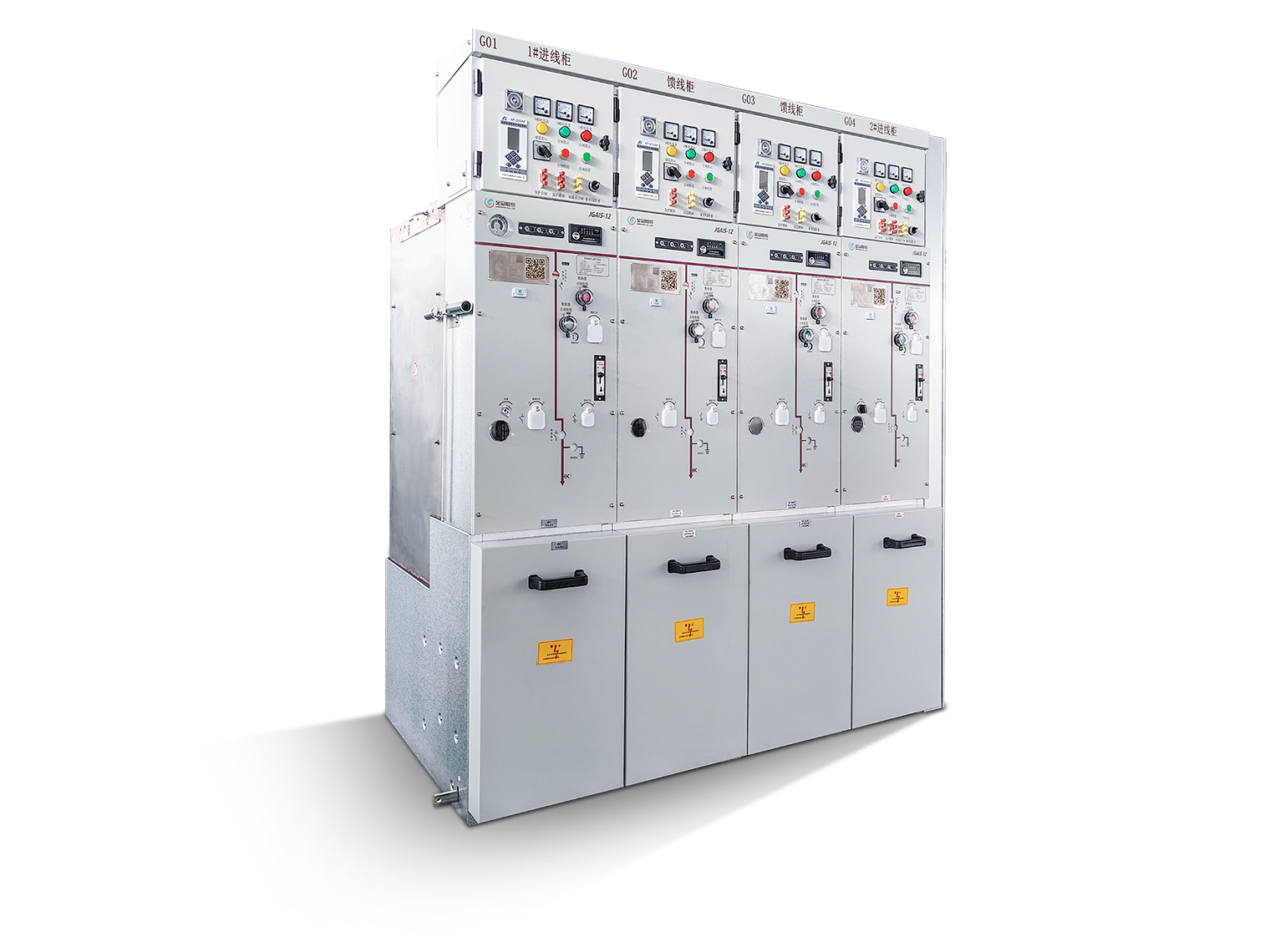

JGAIS-12 environmentally friendly gas insulated ring network switchgear
This product is a 160kW split type DC charging stack that can provide customers with reliable, safe, and fast DC charging services, meeting the charging needs of electric vehicles. The product provides multiple communication interfaces for real-time communication with station level monitoring centers or operation management centers, uploading real-time charging information. The product has a self checking function, which immediately stops charging when abnormalities or faults are detected, ensuring the personal and vehicle safety of the user during the charging process.
Product Highlights
Uses zero-pressure dry air instead of SF6 gas, with no greenhouse gas emissions, making it green and environmentally friendly.
It permanently records the time of zeroing events and the corresponding power data.
Spring energy storage, cam drive, and four-bar linkage mechanism, with a simple structure, stable performance, and long mechanical life.
The ventilation system is highly efficient and easy to maintain.
Oil-free, fully sealed, anti-condensation, explosion-proof, moisture-proof, and pillar-type structure design, requiring little or no maintenance for a long time.
Technical parameters
| Item | C Unit Cabinet | V Unit Cabinet | |
| Load Break Switch Cabinet | Circuit Breaker Cabinet | ||
| Rated Voltage (kV) | 12 | 12 | |
| Rated Current (A) | 630 | 630 | |
| Rated Frequency (Hz) | 50 | 50 | |
| 1min Power Frequency Withstand Voltage (kV) | Phase-to-phase, Phase-to-ground | 42 | 42 |
| Between Breaks | 48 | 48 | |
| Lightning Impulse Withstand Voltage (kV) | Phase-to-phase, Phase-to-ground | 75 | 75 |
| Between Breaks | 85 | 85 | |
| Partial Discharge 1.1Ur (pC) | 20 | 20 | |
| Rated Short-time Withstand Current (kA/s) | 20/4 | 20/4 | |
| Rated Peak Withstand Current (kA) | 50 | 50 | |
| Rated Short-circuit Breaking Current (kA) | - | 20 (30 Times) | |
| Rated Short-circuit Making Current (kA) | 50 | 50 | |
| Rated Capacitive Current Making and Breaking Test | Cable Charging Current (A) | 10 | 25 |
| Overhead Line Charging Current (A) | 1 | 10 | |
| Number of Rated Active Load Current Making and Breaking Operations (Times) | 200 | - | |
| Internal Arc Test | Cable Compartment, Switch Compartment: IAC Level AFLR, 20kA, 50kA (Peak), 0.5s-1s | ||
| Mechanical Life (Times) | Circuit Breaker | - | 10000 |
| Load Break Switch | 10000 | - | |
| Isolating Switch / Earthing Switch | 5000/5000 | 5000/5000 | |
| Protection Class | IP4X | IP4X | |
| IP67 | IP67 | ||
