Data Collection Terminal

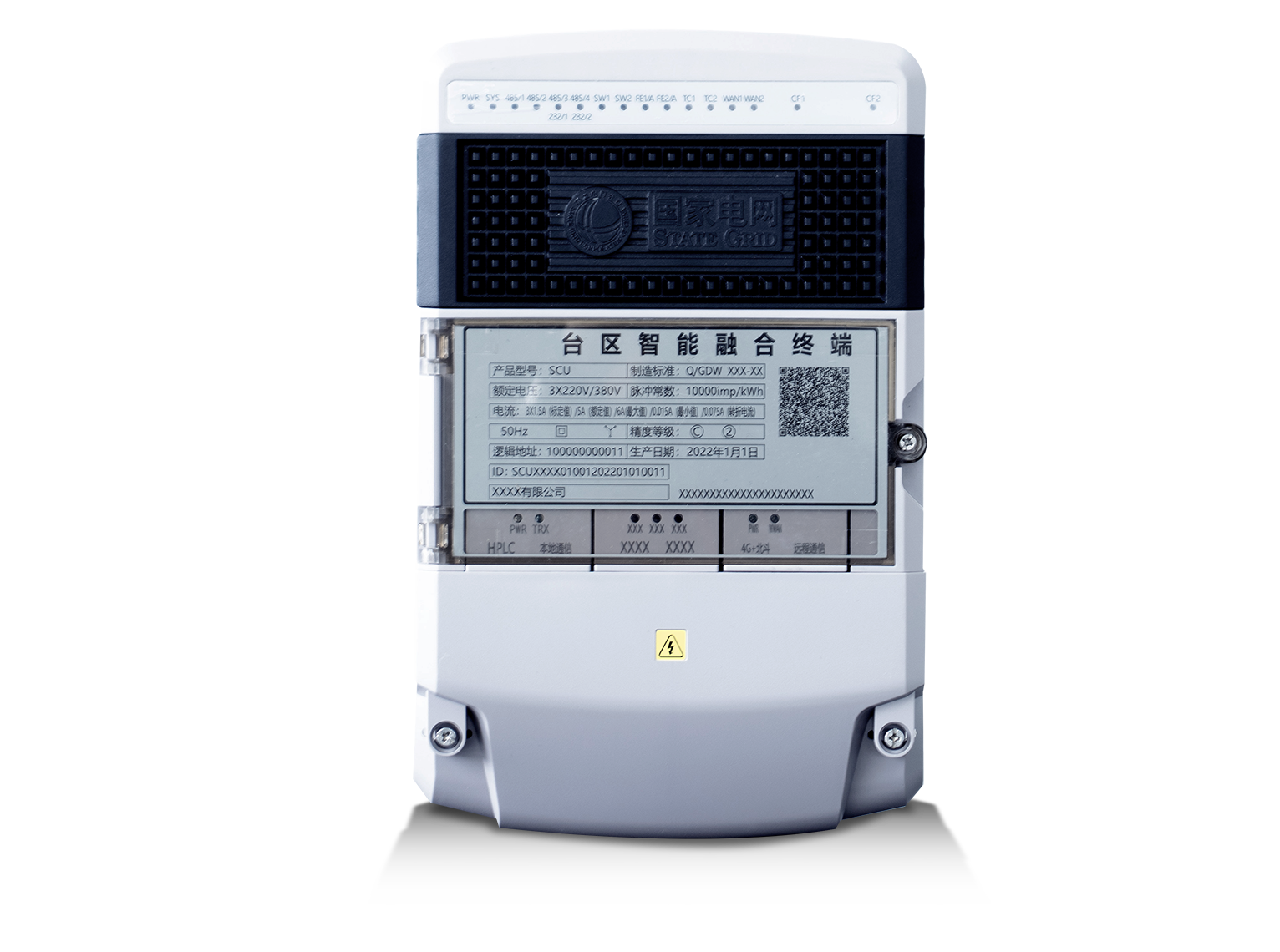

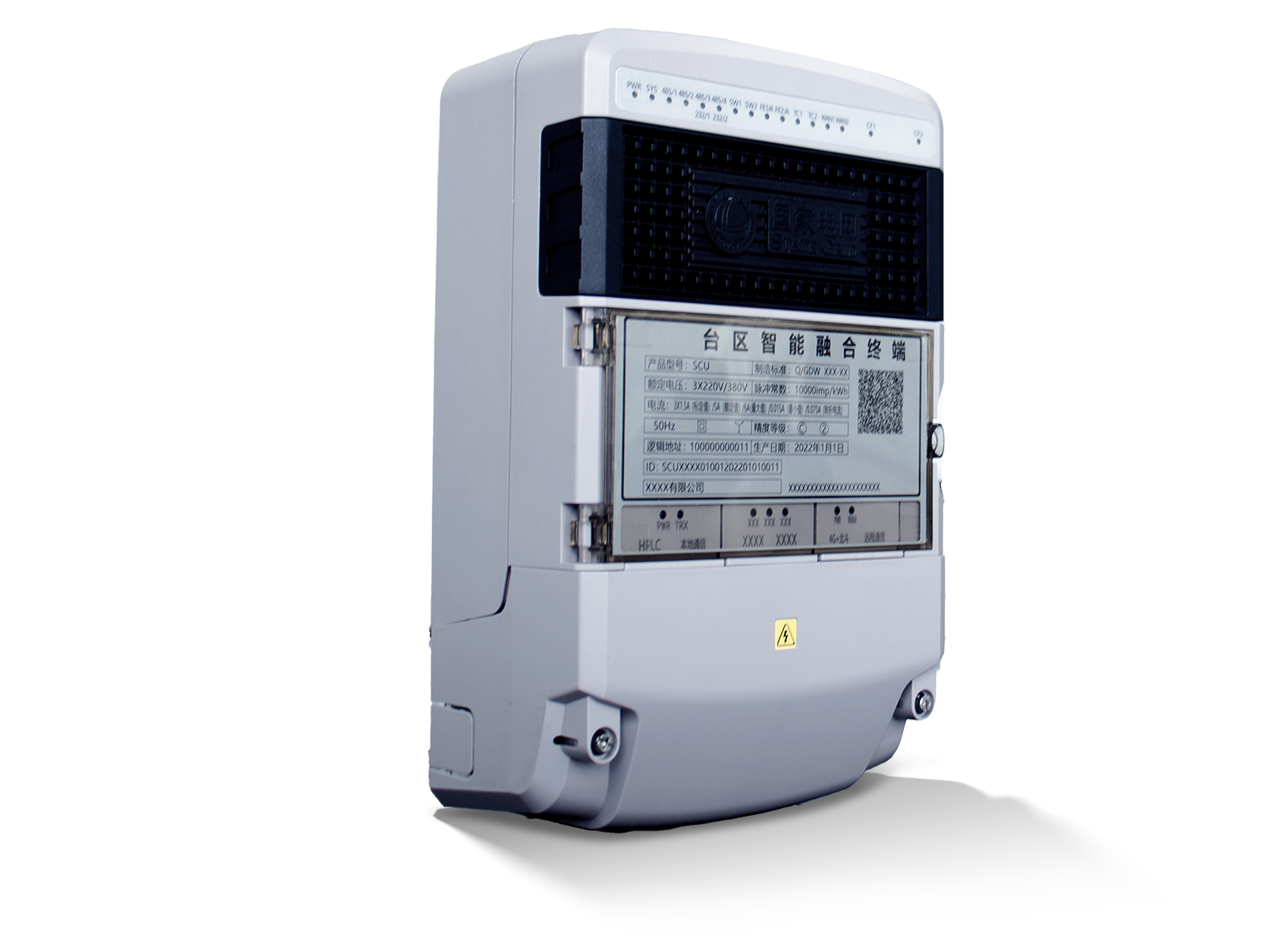

NRZS6811 intelligent integrated terminal
KYN61-40.5 AC Metal Armored Removable Switchgear is a product designed by Jinguan Corporation specifically for indoor environments with a rated voltage of 40.5kV and a rated current of 630-3150A. The switchgear adopts an advanced armored movable structure, which is easy to maintain and repair, and can effectively isolate arcs to ensure the safety of operators. It is widely used in power plants, substations, and industrial and mining enterprises to efficiently receive and distribute electrical energy, and has powerful circuit control, protection, and monitoring functions. Especially suitable for frequent operation scenarios, its sturdy armored metal enclosed structure not only enhances the durability of equipment, but also ensures the safety of operators, making it an ideal choice for modern power distribution systems.
Suitable for fixed parking spaces in residential homes, commercial parking lots, and enterprise parks, meeting daily slow charging needs.
Product Highlights
Transformer monitoring
It can store the collected data locally for subsequent uploading or buffering during communication interruptions.
Data statistics
The drawer unit has a sufficient number of secondary connectors to meet the requirements for the number of connection points for computer interfaces and automatic control circuits.
Data management and storage
Achieves precise control of active and reactive power on the user side.
Terminal event recording
Standard features include analog signal acquisition functions for voltage and current, measuring voltage, current, power, power factor, etc.
Technical parameters
| Performance Parameter Table | |
| Item Name | Main Technical Parameter |
| Meter Constant | 10000 imp/kWh |
| Accuracy Class | Active Power Class C; Reactive Power Class 2 |
| Specification | 0.015-0.075(6)A |
| Reference Voltage | 3×220/380 |
| Operating Frequency | 50Hz |
| Power Consumption | ≤25VA |
| Maximum Operating Range | 0.8Un~1.2Un |
| Communication Interface | 1 wireless public/private network remote communication interface, 4 RS-485, 1 Bluetooth interface, 2 RJ-45 Ethernet |
| Daily Timing Error | ≤±0.5s/d |
| Overall Dimensions | 290mm (Length) × 180mm (Width) × 95mm (Height) |
