Charging Pile

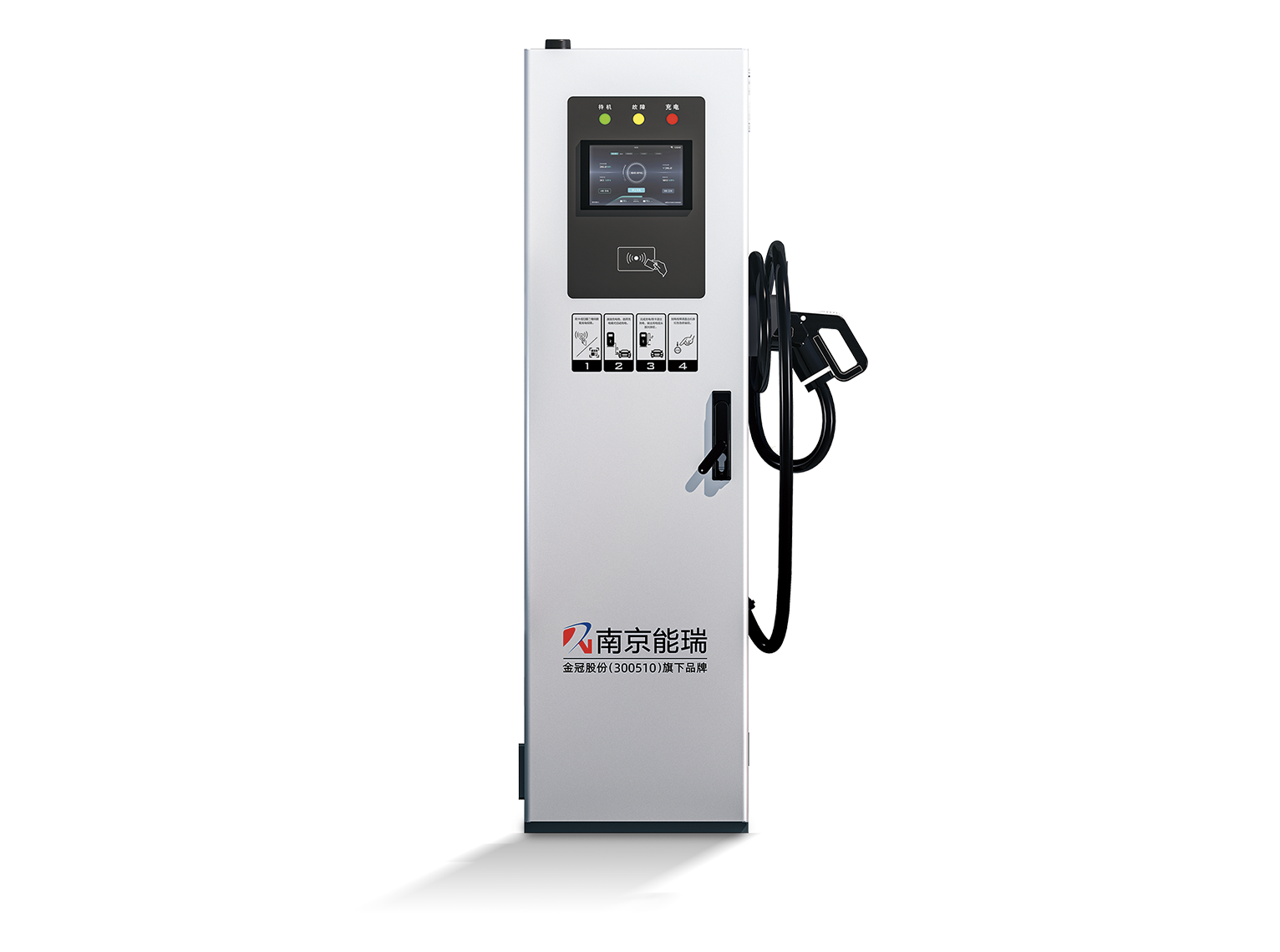

250A split-type DC charging terminal - single gun
The 250A split type DC charging terminal - single gun provides users with an efficient charging experience with its high current output and single gun design. The product has the characteristics of easy charging, rich payment methods, complete protection functions, and supports online upgrades. Its sturdy and durable shell and high standard protection level are suitable for various outdoor environments, making it suitable for commercial charging stations and meeting the fast charging needs of electric vehicles.
Suitable for outdoor temporary charging, emergency rescue charging, event venue charging, and other scenarios, providing fast and convenient charging services for electric vehicles.
Product Highlights
Convenient charging
Diverse payment methods
Complete protection functions
Four charging modes
Strict protection level
Accurate metering and billing
Supports online upgrades
Technical parameters
| Performance Parameters | Item | Parameter |
| Appearance & Structure | Housing Material | Metal |
| Product Dimensions | 400*200*1400mm (L*D*H) | |
| Screen Size | 7 inches | |
| Installation Method | Floor-mounted | |
| Cable Length | 5m (Optional) | |
| Product Weight | 65kg | |
| Product Color | Silver + Space Grey | |
| Electrical Parameters | Rated Input Voltage | 1000V |
| Rated Output Voltage | 1000V | |
| Rated Output Current | 250A | |
| Standby Power Consumption | 10W | |
| Impulse Withstand Voltage | 6kV | |
| Power Frequency Withstand Voltage | DC4.2 kV | |
| Output Configuration | Single Gun | |
| Environmental Adaptability | Operating Temperature | -25℃~55℃ |
| Operating Altitude | ≤2000m | |
| Protection Level | IP55 |
