Charging Pile

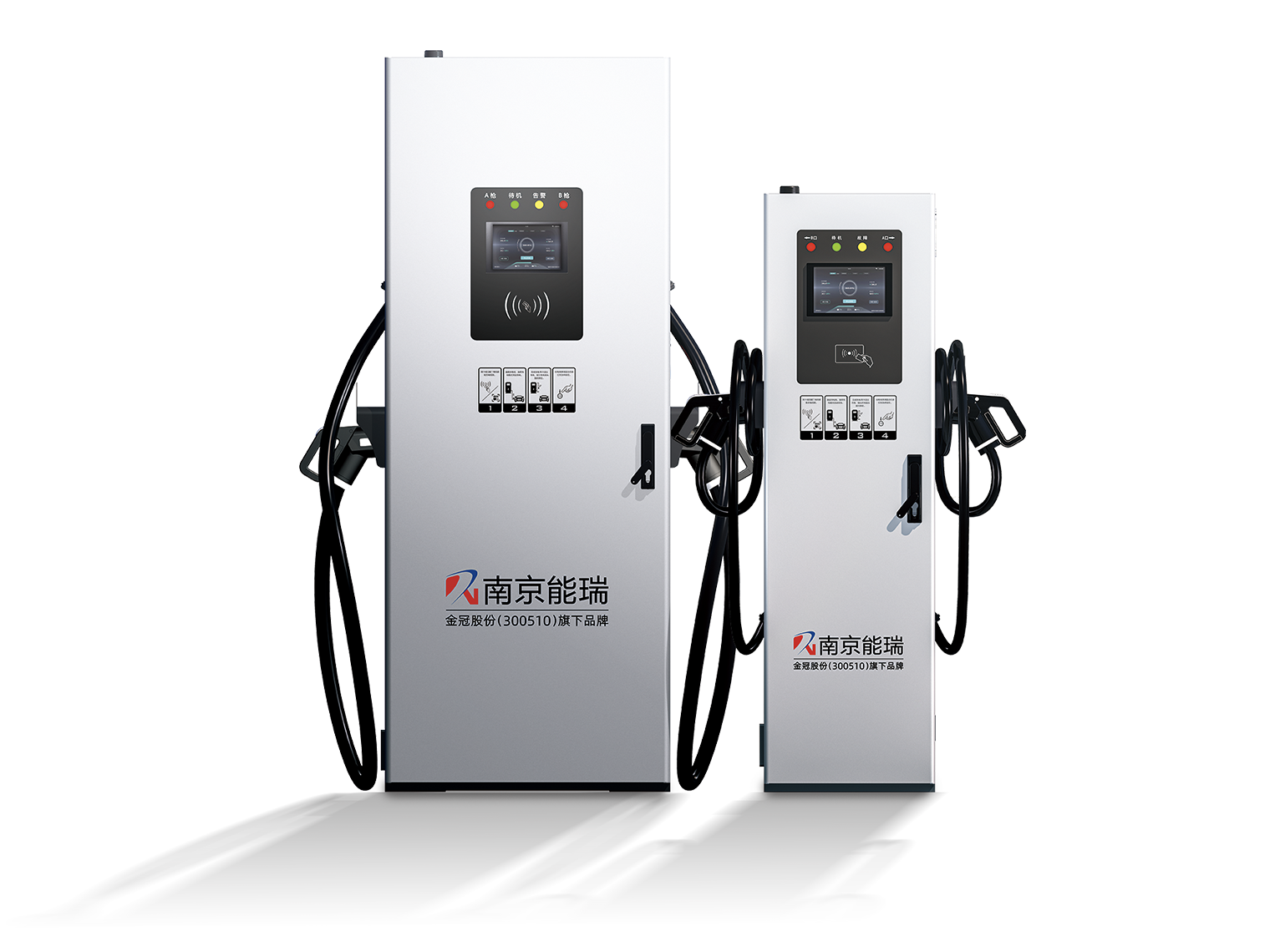

160kW split-type dual-machine four-gun charging pile
The 180-240kW integrated single/dual gun DC charger has high power output, which can meet the fast charging needs of electric vehicles. It has real-time display, rich payment methods, and comprehensive protection functions, ensuring that the charging process is both safe and efficient. Supporting online upgrades and adapting to outdoor environments, it is an ideal choice for commercial charging stations and public charging facilities, providing powerful charging capabilities for electric vehicles.
Meets the power needs of urban power grids, industrial and mining enterprises, etc., and is particularly suitable for power transmission in high-altitude areas.
Product Highlights
Real-time display function
Diverse payment methods
Complete protection functions
Diverse charging modes
Flexible networking methods
Strict protection level
Supports online upgrades
Accurate metering and billing
Technical parameters
| Performance Parameters | Item | Parameter |
| Appearance Structure | Shell Material | Metal |
| Product Dimensions | 700*500*1800mm/400*200*1400mm（L*D*H） | |
| Screen Size | 7 inches | |
| Installation Method | Wall-mounted Installation/Column Installation | |
| Product Weight | 260kg+65kg | |
| Product Color | Silver+Deep Space Gray | |
| Gun Cable Length | 5m (Optional) | |
| Electrical Parameters | Rated Input Voltage | 380V±20% AC |
| Rated Output Voltage | 1000V DC | |
| Rated Output Current | 160A | |
| Single Gun Maximum Output Current | 250A | |
| Rated Power | 160kW | |
| Standby Power Consumption | 20W*N | |
| Impulse Withstand Voltage | 6kV | |
| Power Frequency Withstand Voltage | DC4.2 kV | |
| Output Efficiency | ≥95% | |
| Output Form | Split Dual Machine Four Guns | |
| Lightning Protection Device | Class C | |
| Charging Mode | Four Guns Equal Power Output Any Single Gun Maximum Power Output | |
| Environmental Adaptation | Product Noise | Class Ⅱ |
| Operating Altitude | ≤2000m | |
| Protection Class | IP54 | |
| Operating Temperature | -25℃~55℃ |
Note: The product description is for reference only. The actual appearance, specifications, and other information of the product are subject to the actual product sold.
