Charging Pile

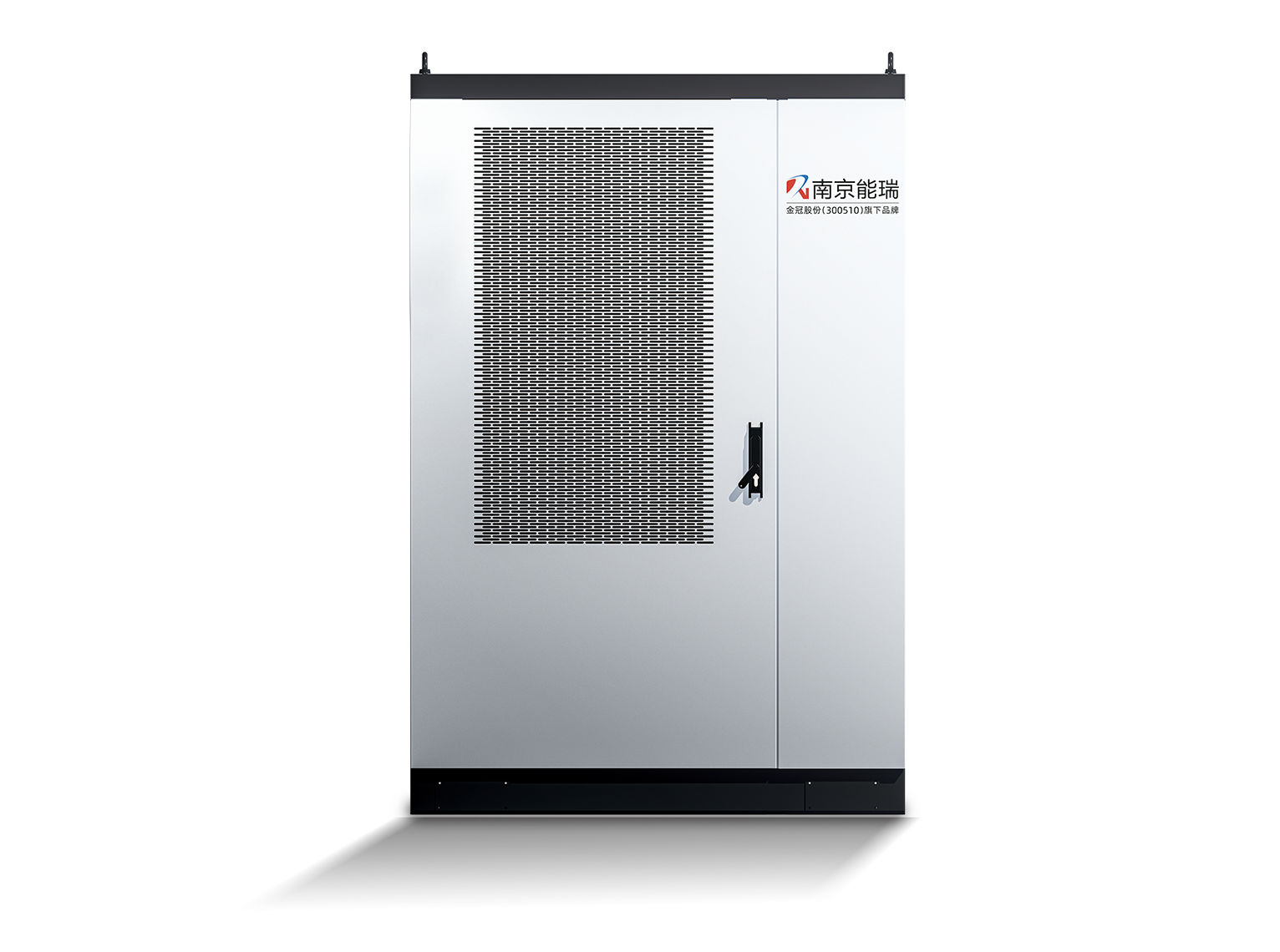

480kW split-type DC charging pile
An intelligent distribution terminal device mainly used for real-time monitoring, fault diagnosis, and energy efficiency optimization in distribution areas. An intelligent fusion terminal device that supports functions such as power quality monitoring, distributed energy access, rapid fault location, and remote control. It integrates functions such as power supply and consumption information collection in the distribution station area, data collection from various collection terminals or energy meters, equipment status monitoring and communication networking, on-site analysis and decision-making, collaborative computing, etc.
Suitable for high load density areas, cable distribution networks, substations, wind power, subways, and other scenarios.
Product Highlights
Diverse charging modes
Flexible payment methods
Dynamic power allocation
Small equipment footprint
Technical parameters
| Performance Parameters | Item | Parameter |
| Appearance Structure | Shell Material | Metal |
| Product Dimensions | 1200*800*1800mm（L*D*H） | |
| Screen Size | No Screen | |
| Product Weight | 400kg （Weight Range: 300-400kg） | |
| Installation Method | Floor Installation | |
| Product Color | Silver+Deep Space Gray | |
| Electrical Parameters | Rated Input Voltage | 380V±20% |
| Rated Output Voltage | 1000V | |
| Rated Output Current | 480A | |
| Single Gun Maximum Output Current | 250A/300A | |
| Rated Power | 480kW | |
| Standby Power Consumption | 20W | |
| Impulse Withstand Voltage | 6kV | |
| Power Frequency Withstand Voltage | DC4.2 kV | |
| Leakage Current | ≤ 30mA | |
| Lightning Protection Device | Class C | |
| Output Form | 8 Channels | |
| Environmental Adaptation | Product Noise | Class Ⅱ |
| Protection Class | IP54 | |
| Operating Altitude | ≤2000m | |
| Operating Temperature | -25℃~55℃ |
