Energy Storage System

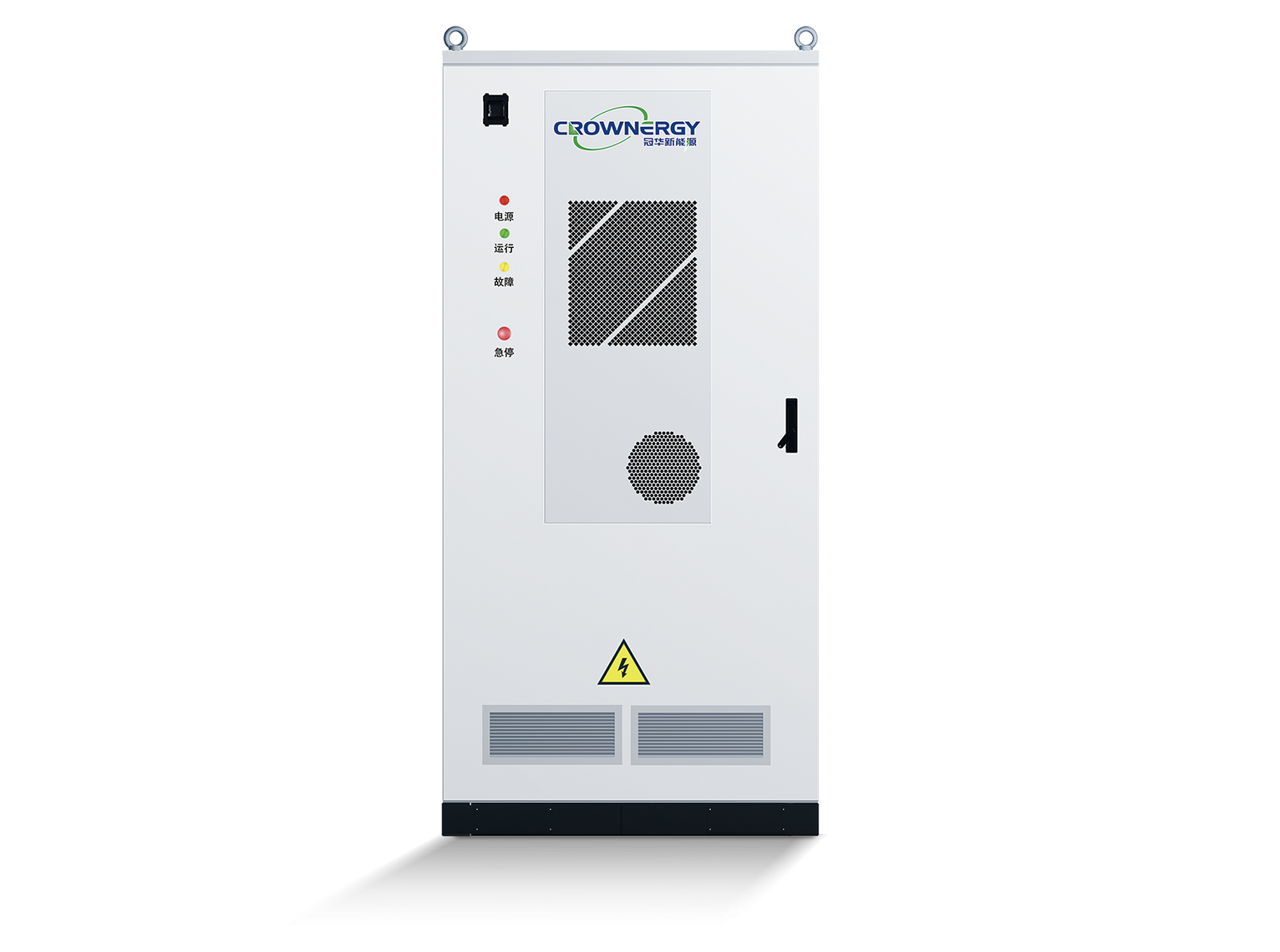

Lithium Iron Phosphate Energy Storage Integrated Machine
This product uses 314Ah lithium iron phosphate battery cells and an integrated air-cooled system. It adopts a more integrated 3S fusion solution, resulting in a more compact overall structure.
Industrial and commercial enterprises, industrial parks, charging stations, commercial buildings, data centers, substation capacity expansion, distributed photovoltaic power generation
Product Highlights
Safe and reliable
Highly integrated
Economical and efficient
Flexible deployment
Technical parameters
| DC Bias Parameters | 100kW/225kWh | System Parameters | 100kW/225kWh |
| Cell Type | LFP-314Ah | System Efficiency | 88% (Max) |
| String Configuration | IP224S | Cycle Life | ≥8000 cycles at (25±2)℃, 0.5P, DOD95%, EOL70% |
| Rated Energy | 225kWh | Cooling Method | Air Cooling |
| Rated Charge/Discharge Power | 0.5P | Protection Level | IP54 |
| Rated Voltage | 716.8V | Fire Protection | Cabinet Level (Pack Level Optional) |
| Operating Voltage Range | 630~810V | Operating Temperature | -20~55℃ (Derating above 45℃) |
| AC Side Parameters | 100kW/225kWh | Relative Humidity | 0%~95%RH, No Condensation |
| Rated Power | 100kW | Noise Level | ≤75dB |
| Maximum Power | 110kW | Operating Altitude | ≤2000m (Derating above 2000m) |
| Rated Voltage | 400V | Communication Interface | CAN/RS485/Ethernet |
| Rated Frequency | 50Hz | Dimensions (W*D*H) | 1130*1320*2360 |
| Wiring Method | 3W3L/3W4L | Weight | Approx. 2.2t |
Note: The product description is for reference only. The actual appearance, specifications, and other information of the product are subject to the actual product sold.
