Energy Storage System

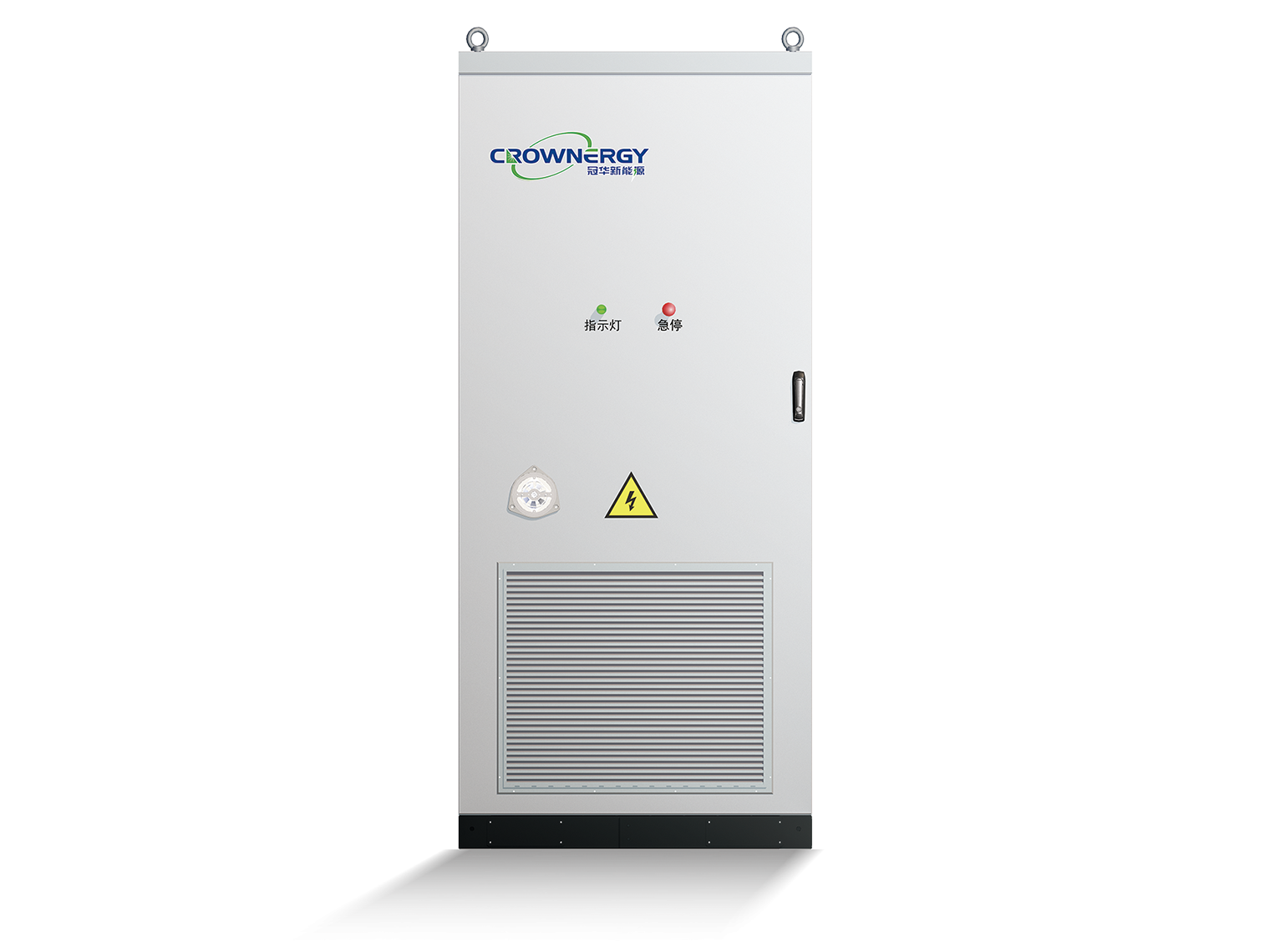

Lithium iron phosphate energy storage integrated machine
This product uses 314Ah lithium iron phosphate battery cells and a liquid cooled integrated machine. Adopting a 2S fusion solution, the system has high efficiency and easier operation and maintenance.
Product Highlights
Safe and reliable
Highly integrated
Economical and efficient
Flexible deployment
Technical parameters
| DC Bias Parameters | 125kW/261kWh | System Parameters | 125kW/261kWh |
| Cell Type | LFP-314Ah | System Efficiency | 90% (Max) |
| String Configuration | IP260S | Cycle Life | ≥10,000 Cycles at (25+2)℃, 0.5P, DOD95%, EOL70% |
| Rated Energy | 261kWh | Cooling Method | Liquid Cooling |
| Rated Charge/Discharge Power | 0.5P | Protection Level | IP54 |
| Rated Voltage | 768V | Fire Protection | Cell Level + Pack Level |
| Operating Voltage Range | 728V~936V | Operating Temperature | -20~55°C (Derated above 45°C) |
| AC Side Parameters | 125kW/261kWh | Relative Humidity | 0%~95%RH, No Condensation |
| Rated Power | 125kW | Noise | ≤75dB |
| Maximum Power | 137.5kW | Operating Altitude | ≤2000m (Derated above 2000m) |
| Rated Voltage | 400V | Communication Interface | CAN/RS485/Ethernet |
| Rated Frequency | 50Hz | Dimensions (W*D*H) | 1050*1365*2370 |
| Wiring Configuration | 3W3L/3W4L | Weight | Approx. 2.3t |
Note: The product description is for reference only. The actual appearance, specifications, and other information of the product are subject to the actual product sold.
