Charging Pile

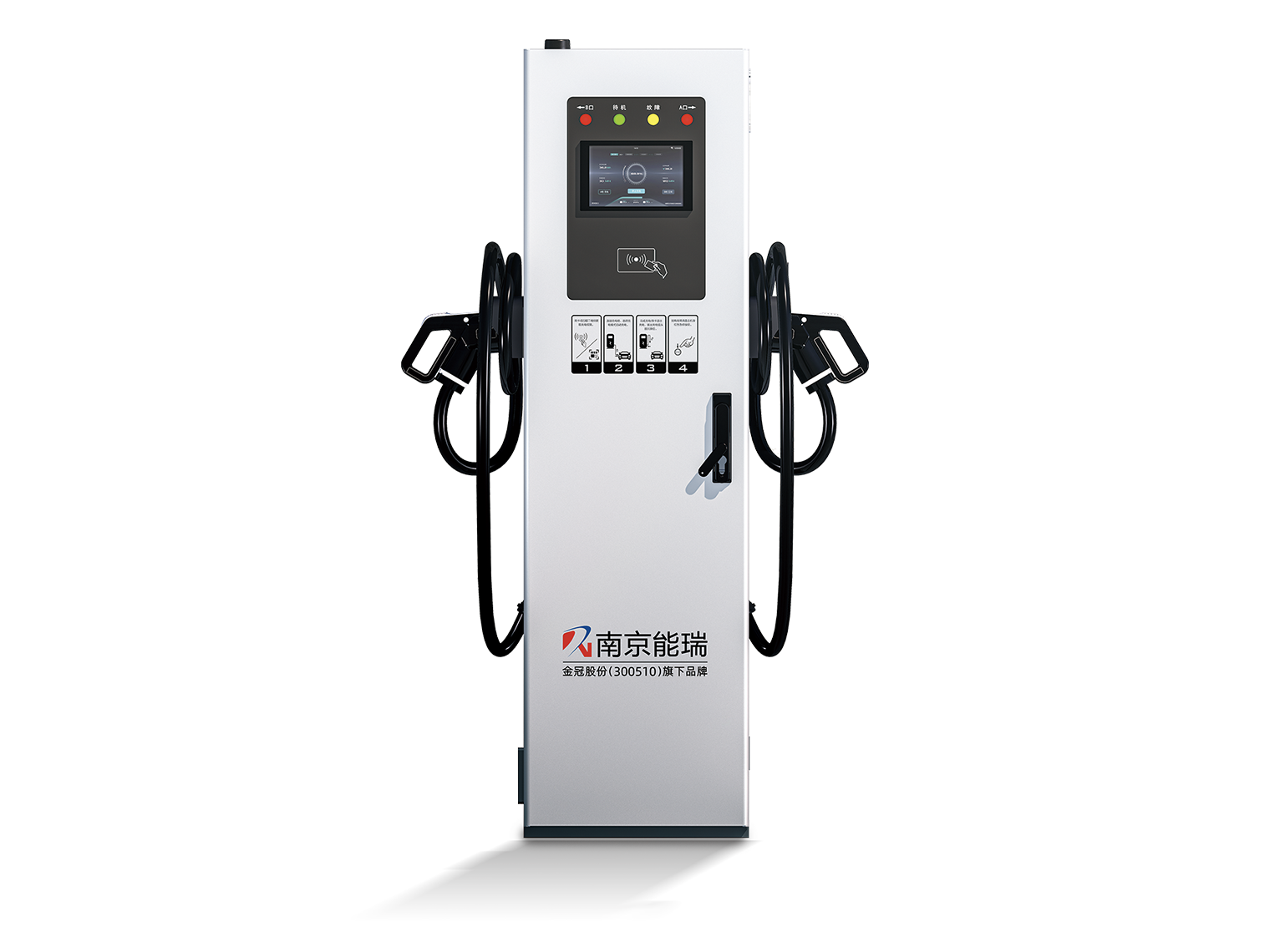

250A Split-Type DC Charging Terminal - Dual-Gun
The 400/600A split-type liquid-cooled DC charging terminal - dual-gun uses liquid cooling technology and supports simultaneous dual-gun output, providing a fast and efficient charging solution. It features real-time monitoring and multiple payment functions, ensuring a transparent and convenient charging process. With a high protection rating, it adapts to various outdoor environments, supports online upgrades, and meets future technological needs, making it an ideal choice for high-traffic charging stations.
Urban and rural distribution networks, industrial parks, distribution automation systems
Product Highlights
Real-time display function
Payment methods
Complete protection functions
Diverse charging modes
Strict protection level
Supports online upgrades
Accurate metering and billing
Technical parameters
| Performance Parameters | Item | Parameter |
| Appearance & Structure | Housing Material | Metal |
| Product Dimensions | 400*200*1400mm (L*D*H) | |
| Screen Size | 7 inches | |
| Installation Method | Floor-mounted | |
| Cable Length | 5m (Optional) | |
| Product Weight | 65kg | |
| Product Color | Silver + Deep Space Gray | |
| Electrical Parameters | Rated Input Voltage | 1000V |
| Rated Output Voltage | 1000V | |
| Rated Output Current | 250A | |
| Standby Power Consumption | 10W | |
| Impulse Withstand Voltage | 6kV | |
| Power Frequency Withstand Voltage | DC4.2 kV | |
| Output Configuration | Dual Connectors | |
| Environmental Adaptability | Operating Temperature | -25℃~55℃ |
| Operating Altitude | ≤2000m | |
| Protection Level | IP55 |
Note: The product description is for reference only. The actual appearance, specifications, and other information of the product are subject to the actual product sold.
