Small Dc Charging Pile

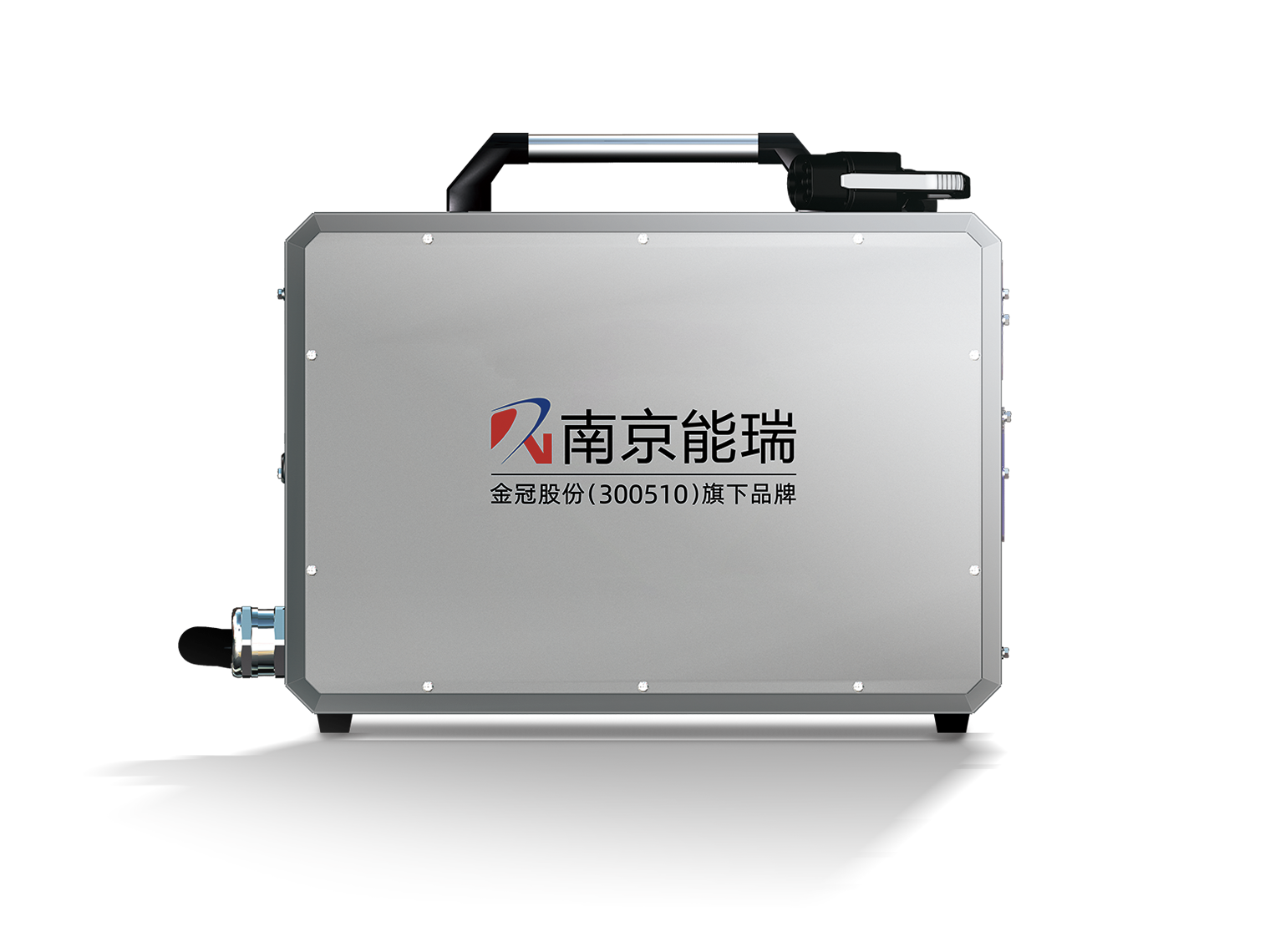

20kW portable single-gun DC charger
The 20kW portable single gun DC charger provides a flexible charging solution for electric vehicle users due to its portability, ease of operation, and comprehensive protection functions. The product has a compact appearance, light weight, and is easy to carry and move. It has efficient charging performance and stable electrical parameters, with a maximum output current of 66.7A and a rated power of 20kW, supporting fast charging. Its working temperature range is wide and it can adapt to different environmental conditions, making it an ideal choice for outdoor charging and emergency charging.
Suitable for residential areas, commercial buildings, industrial plants, and other scenarios, and is an indispensable and important part of modern power systems.
Product Highlights
Simple and easy to operate
Complete protection functions
Event traceability
Charge on demand
Technical parameters
| Performance Parameters | Item | Parameter |
| Appearance & Structure | Housing Material | Metal |
| Product Dimensions | 500*275*350mm (L*D*H) | |
| Screen Size | 4.3 inches | |
| Cable Length | 5m (Optional) | |
| Product Weight | 20kg | |
| Product Color | White-Grey | |
| Electrical Parameters | Rated Input Voltage | 380V±20% |
| Rated Output Voltage | 750V | |
| Rated Output Current | 26.7A | |
| Maximum Output Current | 66.7A | |
| Rated Power | 20kW | |
| Standby Power Consumption | 5W | |
| Impulse Withstand Voltage | 4kV | |
| Power Frequency Withstand Voltage | DC4.2 kV | |
| Output Efficiency | ≥ 95% | |
| Output Configuration | Integrated Single Gun | |
| Lightning Protection Device | None | |
| Product Noise | Class II | |
| Environmental Adaptability | Operating Altitude | ≤2000m |
| Protection Level | IP32 | |
| Cooling Method | Natural Cooling | |
| Operating Temperature | -25℃~55℃ |
