Charger

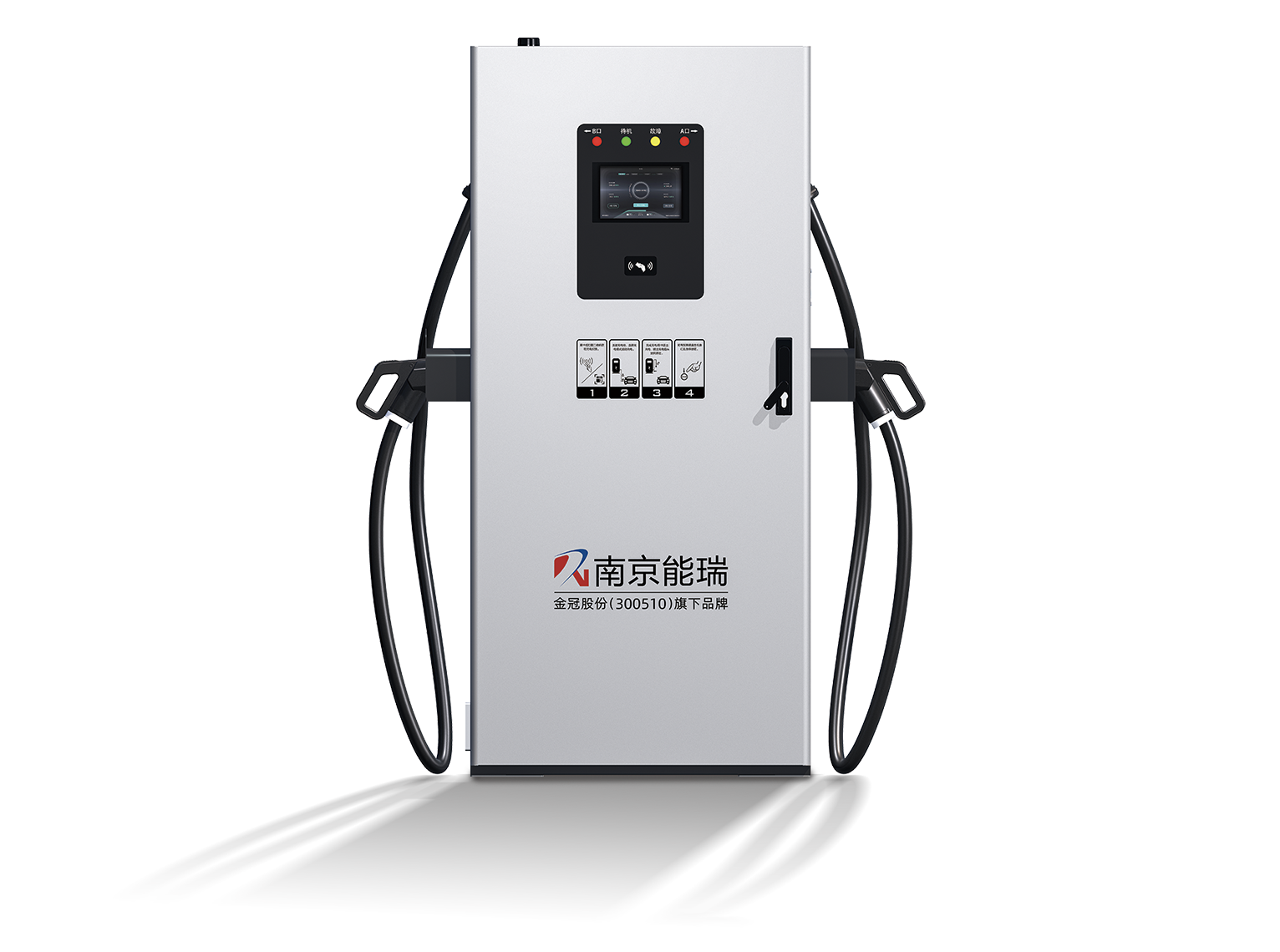

60-160kW Integrated Single/Dual-Gun DC Charger
This product uses a sodium-ion battery liquid-cooled integrated system, offering high safety, a cycle life of over 10,000 cycles, and advantages in low and high temperature resistance.
Suitable for highway service areas, urban public charging stations, commercial center parking lots, etc., meeting the needs of multiple electric vehicles charging simultaneously, especially suitable for high-traffic charging sites, providing fast and reliable charging services for electric vehicle users.
Product Highlights
Simple installation and operation
Diverse payment methods
Complete protection functions
Real-time display function
Supports online upgrades
Strict protection level
Technical parameters
| Performance Parameters | Item | Parameter |
| Appearance & Structure | Housing Material | Metal |
| Product Dimensions | 700*500*1500mm (L*D*H) | |
| Screen Size | 7 inches | |
| Installation Method | Floor-mounted | |
| Cable Length | 5m (Optional) | |
| Product Weight | 20kg | |
| Product Color | White | |
| Electrical Parameters | Rated Input Voltage | 380V±20% AC |
| Rated Output Voltage | 1000V DC | |
| Rated Output Current | 120A (Current Range: 60-160A) | |
| Maximum Output Current | 250A | |
| Rated Power | 160kW (Power Range: 60/80/120/160kW) | |
| Standby Power Consumption | 20W | |
| Impulse Withstand Voltage | 6kV | |
| Power Frequency Withstand Voltage | DC4.2 kV | |
| Output Efficiency | ≥ 95% | |
| Output Configuration | Integrated Single/Dual Connector | |
| Lightning Protection | Class C | |
| Product Noise | Class II | |
| Charging Mode | Single Connector Full Power Output Dual Connector Power Sharing | |
| Environmental Adaptability | Operating Altitude | ≤2000m |
| Protection Level | IP54 | |
| Cooling Method | Natural Cooling | |
| Operating Temperature | -25℃~55℃ |
Note: The product description is for reference only. The actual appearance, specifications, and other information of the product are subject to the actual product sold.
