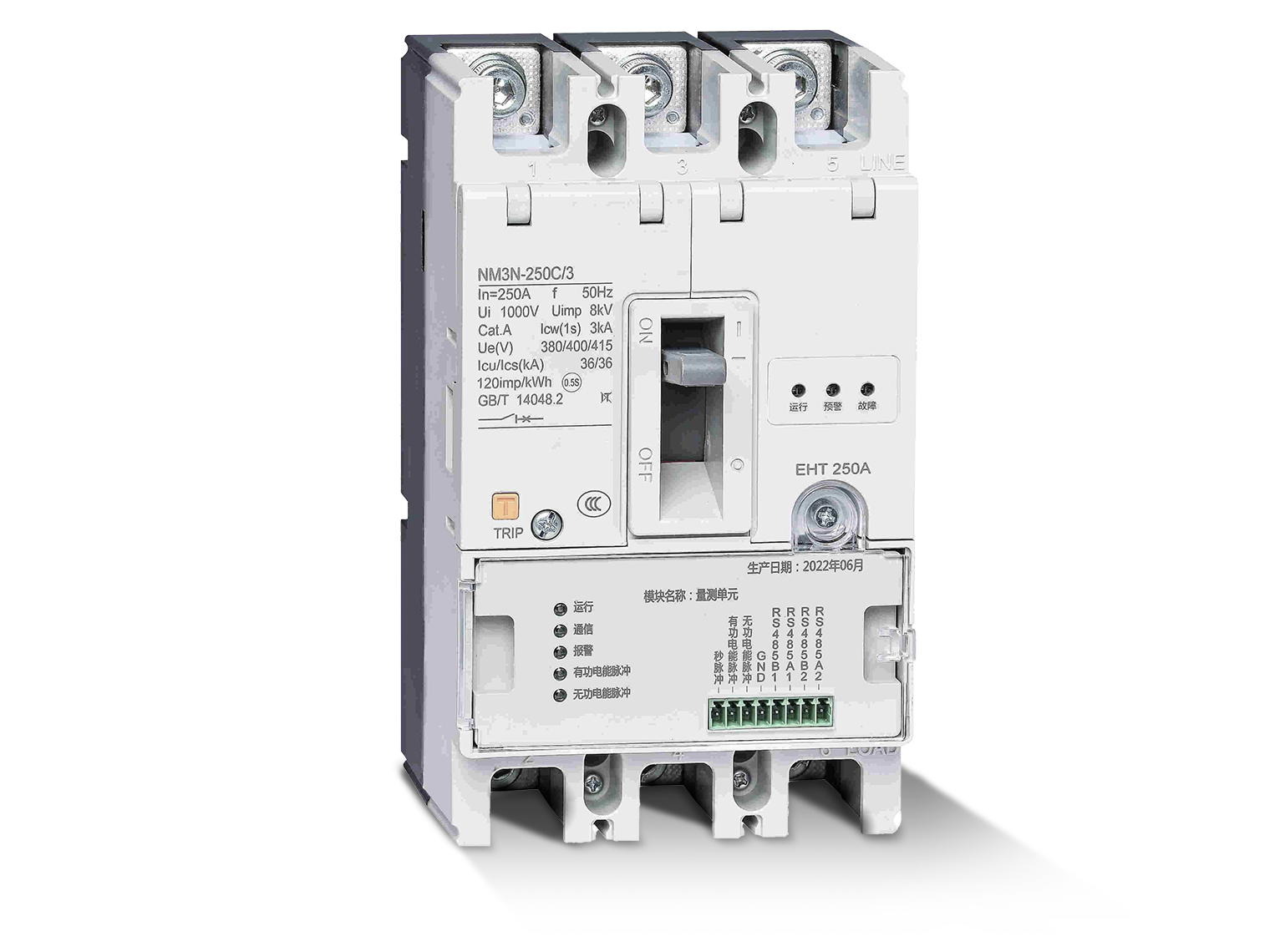

Intelligent Measurement Switch
A low-voltage switchgear integrating high-precision current sensing, real-time monitoring, and intelligent protection functions, widely used in modern power distribution systems. This product series includes molded case circuit breakers and disconnect switches, employing advanced electronic measurement technology to accurately collect key parameters such as current and voltage in the circuit, with a measurement accuracy of within ±1%, meeting various refined power management needs.
Suitable for residential areas, commercial areas, office areas, etc., providing convenient charging services for electric vehicles.
Product Highlights
Multi-level protection strategy
Has a 12-month electricity consumption data storage capacity.
Energy efficiency management and early warning
Achieves regional power outage maintenance without affecting the operation of the main grid, reducing the scope of power outages.
Precise measurement and monitoring
Integrated high-precision sensors collect real-time data such as voltage, current, power, and energy.
Technical parameters
| Performance Parameter Table | |
| Item Name | Main Technical Parameters |
| Meter Constant | 10000 imp/kWh |
| Accuracy Class | Class C |
| Rated Current | 80A, 100A, 125A, 160A, 200A, 250A, etc. |
| Rated Operating Voltage | AC 240 V and AC 400 V |
| Operating Frequency | 50Hz |
| Voltage Circuit Power Consumption | ≤1.5W 6VA |
| Limit Operating Range | 0.0U~1.3U |
| Communication Interface | Supports RS-485, Bluetooth, and Power Line Carrier Communication |
| Daily Timing Error | ≤±0.5s/d |
| Overall Dimensions | 180mm×107mm×97mm |
